4 FIG 41-BT HINGED GALV S/R HANGER

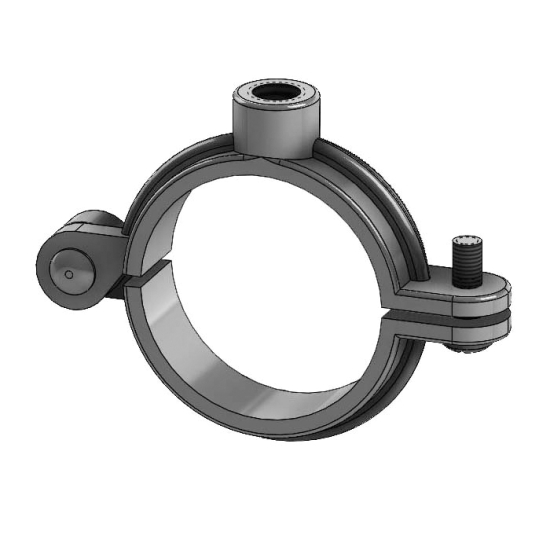

Empire Industries FIG 41H 41HG0400 Split Ring Extension Hanger, 4 IN, 300 LB, Malleable Iron, Electrogalvanized
- Manufacturer: Empire Industries Inc
- Brand: Empire Industries
- MGPN: HGR SPLIT RING GALV 4
- MPN: 41HG0400
- UPC: 663027027414
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Empire Industries FIG 41H Hinged Split Ring Extension Hanger, 4 IN Nominal, Maximum Load: 300 LB, Malleable Iron, Industry Standards: Federal Specification WWH-171-E (Type #25), A-A-1192A (Type #12), MSS-SP58 (Type #12), Finish/Color: Electrogalvanized, 6-3/4 IN Width, Other Physical Dimension: 5-9/16 IN Height, Additional Specifications: Screw Size: 1/4 IN, 1.019 LB Weight
| Item Name | : | Split Ring Extension Hanger |
| Type | : | Hinged |
| Series/Model | : | FIG 41H |
| Nominal Size | : | 4 IN |
| Maximum Load | : | 300 LB |
| Material | : | Malleable Iron |
| Industry Standards | : | Federal Specification WWH-171-E (Type #25), A-A-1192A (Type #12), MSS-SP58 (Type #12) |
| Finish/Color | : | Electrogalvanized |
| Width | : | 6-3/4 IN |
| Other Physical Dimension | : | 5-9/16 IN Height |
| Additional Specifications | : | Screw Size: 1/4 IN |
| Weight | : | 1.019 LB |
- Designed for the suspension of non-insulated stationary pipe lines horizontally or vertically
