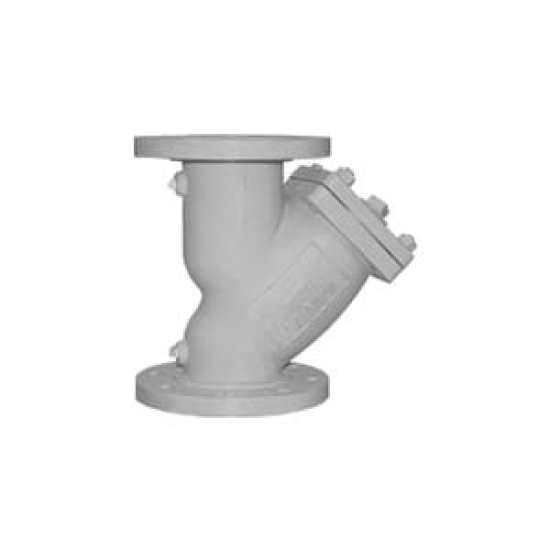

Titan YS62-CS Y-Strainer, 2-1/2 IN Nominal, Flanged Connection, 9-3/4 IN Screen, Blow-Off Port Size: 1 IN, Pressure Class: Class 300, 740 PSI, Carbon Steel Body, Material Standard: ASTM A216 Grade WCB, Finish/Color: Epoxy-Painted, 100 DEG F, 10.62 IN Length, Other Physical Dimension: 6-1/2 IN Center To Bottom, 40 LB Weight

• New design with gauge taps titan units YS62 has convenient gauge taps furnished with a plug on both the inlet and outlet sides of sizes 2 through 16 IN
• These taps allow for easy installation of pressure gauges to monitor differential pressure and determine when screen cleaning is necessary
• Large straining capacity - with its large body and sizable straining element, the YS62 provides excellent open area ratios that are typically two and a half times larger than the corresponding pipeline
• Precision machined seats - precision machined screen seats in both the body and cap help to ensure accurate positioning of the screen during reassembly after cleaning, also, the machined body seats enable finer filtration by preventing debris by-pass
• Self-cleaning capability - with a tapped NPT blow off connection, this unit can be fitted with a blow down valve which facilitates cleaning of the straining element
• Epoxy painted carbon steel units are epoxy painted to help resist rust and corrosion, Titan FCI also offers epoxy-coating

• Installation Instruction Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/TITANSTRCSYS62212_Inst.pdf
• Specification Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/TITANSTRCSYS62212_Spec.pdf
