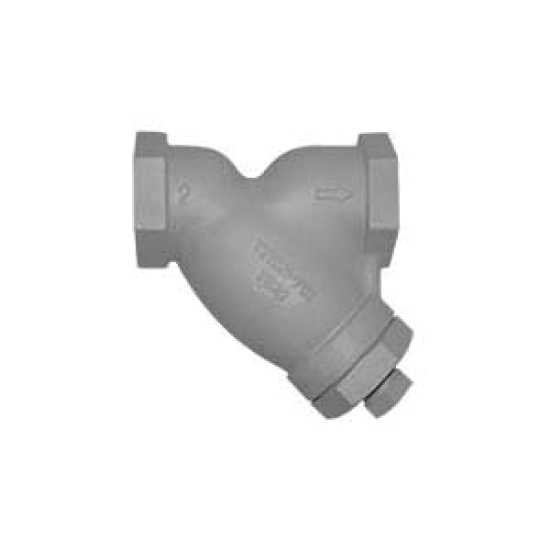

Titan YS81-CS Y-Strainer, 1/2 IN Nominal, Threaded Connection, 2.62 IN Screen, Blow-Off Port Size: 1/4 IN, Pressure Class: Class 600, 1480 PSI, Carbon Steel Body, Material Standard: ASTM A216 Grade WCB, 100 DEG F, 2.93 IN Length, Other Physical Dimension: 2.37 IN Center To Bottom, 1.5 LB Weight

• Bolted and cap cover designs - Titan units YS8IBC and YS82BC sizes 2 IN and 3 IN have a bolted cover as standard
• Rugged - high-quality design the YSBI and YS82 are ideal for petrochemical and other demanding industrial applications that have higher pressure and temperature requirements
• Large straining capacity - with its large body and sizable straining element, the YSBI and YS82 provide excellent open area ratios that are typically two and a half times larger than the corresponding pipeline
• Precision machined seats - precision machined screen seats in both the body and cap help to ensure accurate positioning of the screen during reassembly after cleaning, also, the machined body seats enable finer filtration by preventing debris by-pass
• Self-cleaning capability - with the optional socket weld blow off connection, this unit can be fitted with a blow down valve which facilitates cleaning of the straining element
• Epoxy painted - carbon units are epoxy painted to help resist rust and corrosion, Titan FCI also offers epoxy-coating

• Specification Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/TITANSTRCSTHDYS8112_Spec.pdf
