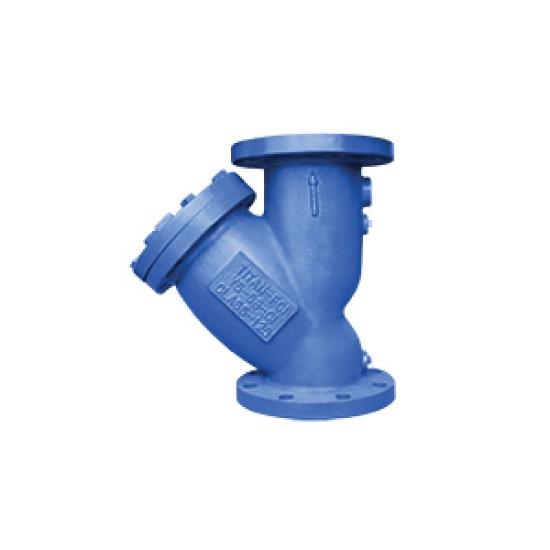

Titan YS 58-CI Y-Strainer, 2-1/2 IN Nominal, Flanged Connection, 9-3/4 IN Screen, Blow-Off Port Size: 1 IN, Pressure Class: Class 125, 200 PSI, Cast Iron Body, Material Standard: ASTM A126 Grade B, Finish/Color: Epoxy-Painted, Industry Standards: ASME, 150 DEG F, 10 IN Length, Other Physical Dimension: 6-1/2 IN Center To Bottom, 33 LB Weight

• New design with gauge taps - Titan's YS58 has convenient gauge taps furnished with a plug on both the inlet and outlet sides of sizes 2 through 20 IN
• These taps allow for easy installation of pressure gauges to monitor differential pressure and determine when screen cleaning is necessary, additionally, sizes 2 through 6 IN have an extra boss for custom gauge tapping
• Large straining capacity - with its large body and sizable straining element, the YS58 provides excellent open area ratios that are typically two and a half times larger than the corresponding pipeline
• Precision machined seats - precision machined screen seats in both the body and cap help to ensure accurate positioning of the screen during reassembly after cleaning, also, the machined body seats enable finer filtration by preventing debris by-pass
• Self-cleaning capability - with a tapped NPT blow off connection, this unit can be fitted with a blow down valve which facilitates cleaning of the straining element
• Epoxy painted - all units are epoxy painted to help resist rust and corrosion

• Specification Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/TITANSTRCIYS58212_Spec.pdf
