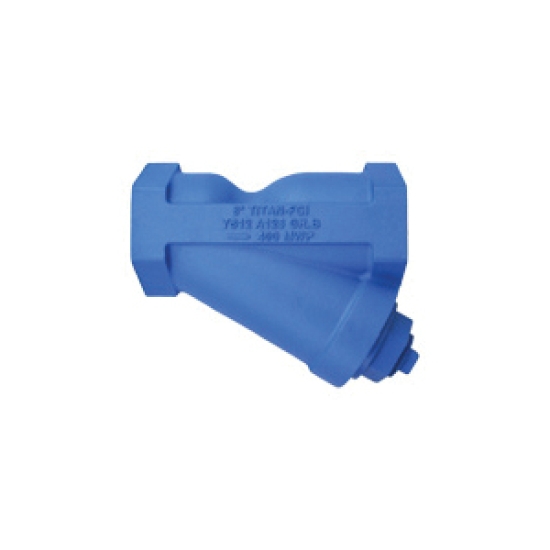

Titan YS12-CI Y-Strainer, 1/2 IN Nominal, Threaded Connection, 2-3/8 IN Screen, Blow-Off Port Size: 1/4 IN, Pressure Class: Class 250, 400 PSI, Cast Iron Body, Material Standard: ASTM A126 Grade B, Finish/Color: Epoxy-Painted, Industry Standards: ASME, 150 DEG F, 3.188 IN Length, Other Physical Dimension: 2.063 IN Center To Bottom, 1.5 LB Weight

• Large straining capacity - with its large body and sizable straining element, the YS12 provides excellent open area ratios that are typically two and a half times larger than the corresponding pipeline
• Precision machined seats - precision machined screen seats in both the body and cap help to ensure accurate positioning of the screen during reassembly after cleaning, also, the machined body seats enable finer filtration by preventing debris by-pass
• Self-cleaning capability - with a tapped NPT blow off connection, this unit can be fitted with a blow down valve which facilitates cleaning of the straining element
• Epoxy painted - all units are epoxy painted to help resist rust and corrosion
• Threaded cap - the Titan FCI YSI2 has straight threads to permit easy cap removal, for cleaning and proper alignment when reassembling strainer
• Natural gas and other special applications - Titan has extensively tested the YS12 in gas applications and determined that Buna-N gaskets provide superb sealing capabilities, for the service

• Specification Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/TITANSTRCIYS1212_Spec.pdf
