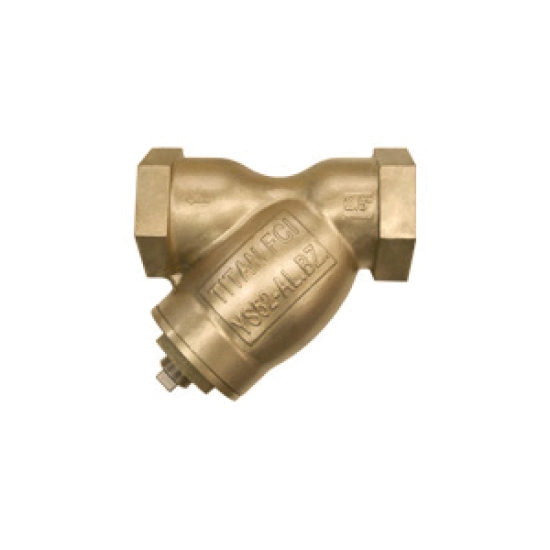

Titan YS52-AB Y-Strainer, 2 IN Nominal, Threaded Connection, 10 IN Screen, Blow-Off Port Size: 1 IN, Pressure Class: Class 250, 400 PSI, Aluminum Bronze Body, Material Standard: B148, Industry Standards: ANSI, 150 DEG F, 5.68 IN Length, Other Physical Dimension: 4.39 IN Center To Bottom, 5.6 LB Weight

• ASTM BI48 body material aluminum bronze is stronger and less likely to corrode than other bronze alloys, making them a preferred choice for sea water and other applications where corrosion is a concern, because of its copper content, marine organisms cannot colonize on the material
• Additionally, titan unit YS52-AB is used for potable water applications as it meets lead-free statutes requiring that the lead content in the wetted surfaces is 0.25% or less as determined by a weighted average
• Large straining capacity - with its large body and sizable straining element, the YS52 provides excellent open area ratios that are typically two and a half times larger than the corresponding pipeline, minimizing pressure drop across the valve
• Precision machined seats - precision machined screen seats in both the body and cap help to ensure accurate positioning of the screen during reassembly after cleaning, also, the machined body seats enable finer filtration by preventing debris by-pass
• Self-cleaning capability - with a tapped NPT blow off connection, this unit can be fitted with a blow down valve which facilitates cleaning of the straining element

• Installation Instruction Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/TITANSTRBRLFYS522_Inst.pdf
• Specification Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/TITANSTRBRLFYS522_Spec.pdf
