The NIBCO Press System® ball valve body is manufactured from lead-free HydraPure® performance bronze alloy and is dezincification-resistant. The ball valve is designed with press to connect copper end connections with an inboard bead and EPDM O-ring for quick and easy copper to copper joinery. Properly applying pressure from a press fit tool tightens the O-ring onto the tube, ensuring a clean, permanent, watertight seal in seconds, with no flame, solder or flux.

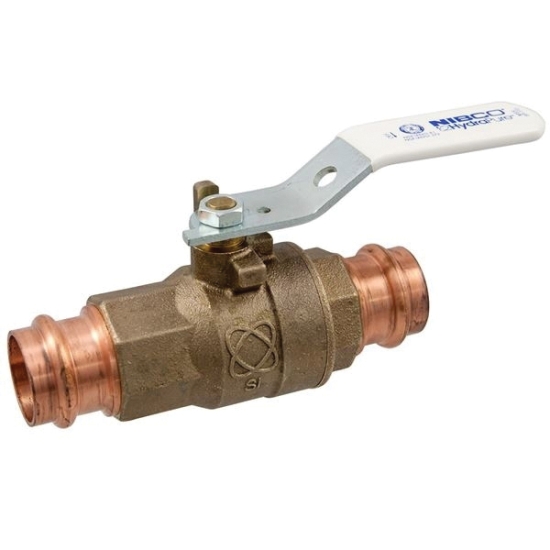

NIBCO PC-585-66-LF 2-Piece Full Port Quarter-Turn Ball Valve, 3 IN Nominal, Female Press X Female Press Connection, 600 PSI CWP, 250 DEG F, Silicon Bronze Body, Standard Lever Handle Operator, Plated Steel Handle, 316 Stainless Steel Stem, Stainless Steel Trim, PTFE Packing, Brass Gland, RPTFE Seat, Material Standard: ASTM B584, ASTM A276, Industry Standards: ASME A112.4.14/CSA B125.14, MSS-SP110/145, IAPMO/ANSI Z1157 Certified, NSF/ANSI/CAN 61/372-8, ICC-ES PMG, Lead Free: Yes, Other Physical Dimension: 10.45 IN Inlet To Outlet Length, 4.58 IN Top To Inlet Center

• Valve pressure rating 250 PSI/17.2 BAR non-shock cold working pressure
• Copper to copper connections
• Stainless steel trim
• Blowout-proof stem design
• Reinforced PTFE seat rings
• Press leak detection feature
• Multiple handle options, including NIB-SEAL®
• Dezincification-resistant
• Lead-free

• Specification Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/NIBCOPRESSVLVBAPXPPC58566LF3_Spec.pdf
