UPONOR PROPEX LF BRASS BALL VALVE , 3/4 3/4 PEX X 3/4 COPPER ADAPTER

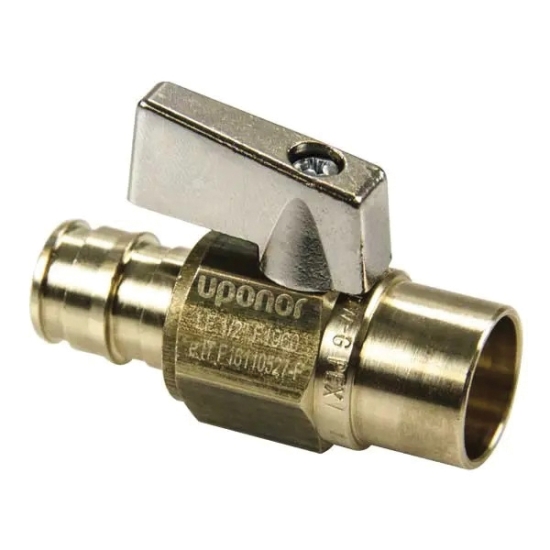

Uponor LF4807575 ProPEX Brass Full-Port Ball Valve, 3/4 X 3/4 IN, PEX X Sweat
- Manufacturer: Uponor
- Brand: Uponor
- MGPN: LF4807575
- MPN: LF4807575
- UPC: 673372244923
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
ProPEX Full-Port Ball Valve, 3/4 X 3/4 IN, PEX X Sweat, Quarter Turn Handle Operator, 2.882 IN Width, 1.769 IN Height, Brass Body, Material Standard: ASTM F1960, ASTM F877, 200.2 PSI (CWP), Lead Free: Yes, Industry Standards: NSF/ANSI/CAN 372, NSF/ANSI 359, CSA B137.5, NSF/ANSI/CAN 61, NSF/ANSI 14, cNSFus-pw-G, U.P.Code, UPC, IRC, IPC, NPC of Canada, 1.22 IN Width Across Corner
| Sub Brand | : | ProPEX |
| Item Name | : | Ball Valve |
| Type | : | Full-Port |
| Nominal Size | : | 3/4 X 3/4 IN |
| Connection Type | : | PEX X Sweat |
| Operator Type | : | Quarter Turn Handle |
| Width | : | 2.882 IN |
| Height | : | 1.769 IN |
| Body Material | : | Brass |
| Material Standard | : | ASTM F1960, ASTM F877 |
| Maximum Pressure | : | 200.2 PSI (CWP) |
| Lead Free | : | Yes |
| Industry Standards | : | NSF/ANSI/CAN 372, NSF/ANSI 359, CSA B137.5, NSF/ANSI/CAN 61, NSF/ANSI 14, cNSFus-pw-G, U.P.Code, UPC, IRC, IPC, NPC of Canada |
| Other Physical Dimension | : | 1.22 IN Width Across Corner |
ProPEX® brass to copper (quarter turn) ball valves feature a shutoff valve for 1/2 and 3/4 IN Uponor AquaPEX® tubing to 1/2 and 3/4 IN copper pipe. These valves are not compatible with applications using glycol.
Application: For radiant heating and cooling systems, permafrost protection systems, turf conditioning systems
