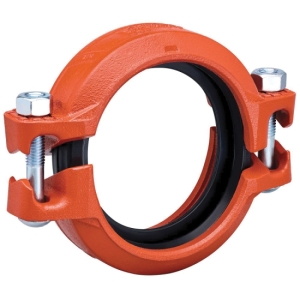

Victaulic QuickVic™ Style 107V Orange Enamel Painted Ductile Iron Pre-Assembled Rigid Coupling With Grade E Gasket, 2 IN, Grooved
- Manufacturer: Victaulic Company
- Brand: Victaulic
- MGPN: 200P107VCE
- MPN: C020107PE0
- UPC: 195150239513
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
| Sub Brand | : | QuickVic™ |
| Item Name | : | Rigid Coupling With Grade E Gasket |
| Type | : | Pre-Assembled |
| Series/Model | : | Style 107V |
| Nominal Size | : | 2 IN |
| Connection Type | : | Grooved |
| Material | : | Ductile Iron |
| Material Standard | : | ASTM A536 Grade 65-45-12 |
| Finish/Color | : | Orange Enamel Painted |
| Outside Diameter | : | 2-3/8 IN |
| Length | : | 6.13 IN |
| Maximum Pressure | : | 750 PSI |
| Temperature Rating | : | -30 To 230 DEG F |
| Industry Standards | : | C/US UL Listed, FM Approved |
| Other Physical Dimension | : | 2-1/4 IN Width, 0.15 IN Allowable Pipe End Separation, (2) 1/2 X 2-3/4 IN Bolt/Nut, 4 IN Body Outside Diameter |
| Domestic/Import | : | Domestic |
- Shift limiting slant pad provides rigidity
- Pressure rated up to 750 PSI/5171 KPA/52 BAR
