3/4 S74 800 FS THRD CHECK VALVE

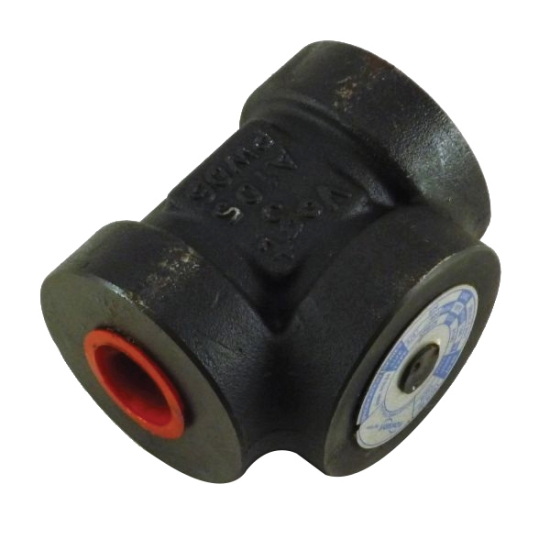

Vogt Valves S74 Class 800 Forged Carbon Steel Conventional Port Swing Check Valve, 3/4 IN, Threaded
- Manufacturer: Vogt Valves
- Brand: Vogt Valves
- MGPN: 075S74CV
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
| Item Name | : | Swing Check Valve |
| Type | : | Conventional Port |
| Series/Model | : | Series S74 |
| Nominal Size | : | 3/4 IN |
| Connection Type | : | Threaded |
| Pressure Rating | : | 1975 PSI |
| Pressure Class | : | Class 800 |
| Temperature Rating | : | 100 DEG F |
| Body Material | : | Forged Carbon Steel |
| Trim Material | : | 13% Chromium |
| Material Standard | : | Body: ASTM A105 |
| Industry Standards | : | ASME B16.34 |
| Width | : | 3-1/2 IN |
| Lead Free | : | No |
| Other Physical Dimension | : | 1-3/4 IN Inlet Center To Top Of Valve |
| Additional Specifications | : | Flow Co-Efficient (Cv): 6.8 |
- No bonnet
- Horizontal or vertical upward flow
- Swing type check
- Welded seat insert
- Hard faced seat
