6 375AST-BG RED PRESSURE PRINCIPLE ASSEMBLY W/GRVD BUTTERFLY VALVES, LEAD FREE

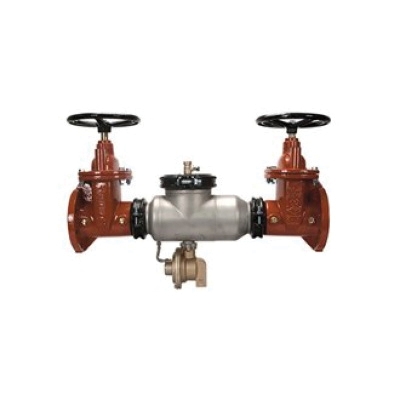

Wilkins 375AST Lead Free 304L Stainless Steel Backflow Preventer Reduced Pressure Principle Assembly With Grooved End Butterfly Valve And Integral Supervisory Switch, 6 IN, Grooved End
- Manufacturer: Zurn Industries Limited
- Brand: Wilkins
- MGPN: 600375ASTBG
- MPN: 6-375ASTBG
- UPC: 61205223609
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
The 375AST Reduced Pressure Principle Backflow Assembly is utilized in high hazard applications for all applications and market segments, protecting against back-siphonage and backpressure of contaminated water into the potable water supply. The 375AST offers lightweight design with a high quality, 304L grade stainless steel valve body and sensing line, plus stainless steel internals, fasteners, and springs. Multiple options for end connections, such as NRS, OS and Y, and butterfly shut-off valves, offer supreme installation versatility, and its corrosion-resistant design saves you money on maintenance costs.
| Item Name | : | Reduced Pressure Principle Assembly With Grooved End Butterfly Valve And Integral Supervisory Switch |
| Type | : | Backflow Preventer |
| Series/Model | : | Model 375AST |
| Nominal Size | : | 6 IN |
| Connection Type | : | Grooved End |
| Pressure Rating | : | 175 PSI |
| Temperature Rating | : | 140 DEG F |
| Body Material | : | 304L Stainless Steel |
| Stem Material | : | Stainless Steel |
| Trim Material | : | EPDM Disc |
| Seal Material | : | EPDM |
| Material Standard | : | Stem: ASTM A276 |
| Industry Standards | : | ASSE Listed 1013, IAPMO Certified, Certified To NSF/ANSI/CAN 61, CSA Certified, AWWA Compliant C510 And C550, FM Approved, UL/CUL Classified, FDA Approved, UPC Listed, AWWA C606 |
| Width | : | 36-1/2 IN |
| Height | : | 21 IN |
| Lead Free | : | Yes |
- Short lay-length for small space installation
- Reliable performance and improved flow characteristics from patented compound check, allowing for installation in lower-pressure systems
- Ideal for any backflow replacement
- Lower maintenance costs from corrosion-resistance of stainless body
Instruction/Installation Manual
