1 X 1 150 FS PFA LINED INSTR TEE

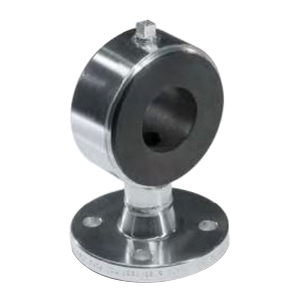

Baum America Corporation 110410 Class 150 Forged Steel PFA Lined Instrument Tee, 1 IN, Flanged
- Manufacturer: Baum America Corporation
- Brand: Baum America Corporation
- MGPN: BAUM110410
- MPN: 110410
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Instrument tees, also known as gauge connections, are the one-piece solution with PFA or PP lining for the connection to your measuring devices. In case of narrow space, also useable as short tee.
| Item Name | : | Instrument Tee |
| Type | : | PFA Lined |
| Pressure Class | : | Class 150 |
| Nominal Size | : | 1 IN |
| Connection Type | : | Flanged |
| Material | : | Forged Steel |
| Material Standard | : | ASTM A234 Grade WPB, ASTM D638, ASTM F1545-15a |
| Length | : | 7.08 IN |
| Maximum Pressure | : | 250 PSIG |
| Temperature Rating | : | 100 DEG F |
| Industry Standards | : | ISO 9001:2008 Certified |
- Earthing stud/lug
- Vent hole extension
