3/4 VELAN VALVE ASSEMBLY CONSISTING OF: 3/4 VELAN W04-T1802-SSEZ SW 3-PC VPT2000 CS/SS FP MPTFE BALL VALVE FIRE-TESTED API 607

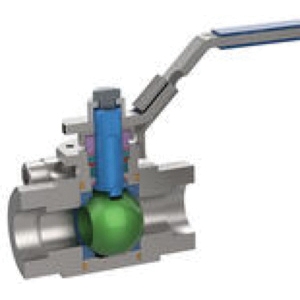

Velan Memoryseal™ VTP-2000 Carbon Steel Lever Handle 3-Piece Full-Port Ball Valve, 3/4 IN, Socket Weld, Fire-Tested
- Manufacturer: Velan Valve Corporation
- Brand: Velan
- MGPN: VT075WT1802BV
- MPN: W04-T1802-SSEZ
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
| Additional Specifications | : | Flow Co-Efficient (Cv): 50 |
| Body Material | : | Carbon Steel |
| Connection Type | : | Socket Weld |
| Handle Material | : | 304 Stainless Steel |
| Industry Standards | : | ASME B16.34, API 598, Fire-Tested to API 607 Rev. 5/ISO 10497, ISO5211 |
| Item Name | : | Ball Valve |
| Lead Free | : | No |
| Material Standard | : | Body: ASTM A105 Grade WCB |
| Nominal Size | : | 3/4 IN |
| Operator Type | : | Lever Handle |
| Other Physical Dimension | : | 3.56 IN Inlet Center To Top Of Handle, 5.97 IN Handle Length |
| Packing Material | : | PTFE |
| Pressure Rating | : | 1500 - 2000 PSI (WOG) |
| Seal Material | : | PTFE |
| Seat Material | : | MPTFE |
| Series/Model | : | Model VTP-2000 |
| Stem Material | : | 316 Stainless Steel |
| Sub Brand | : | Memoryseal™ |
| Temperature Rating | : | 0 - 450 DEG F |
| Trim Material | : | 316 Stainless Steel |
| Type | : | 3-Piece, Full-Port |
| Width | : | 3.68 IN |
- Velan's VTP-2000 3-piece ball valve is a high-performance ball valve, ideal for a wide variety of services
- Designed for simple, in-line maintenance, and long, reliable service life, this resilient-seated ball valve offers sophisticated technical features that enable superior performance at an economical cost
- VTP-2000 3-piece ball valves, are compliant with API 608 and dual qualified to API 641 and ISO 15848-1 fugitive emissions standards
