GRUNDFOS UPS50-60F 1/2 HP 3 SPEED 115 V CIRCULATING PUMP NOTE: ADD SEPARATE LINE 96409354 FLG SET TO THIS PUMP

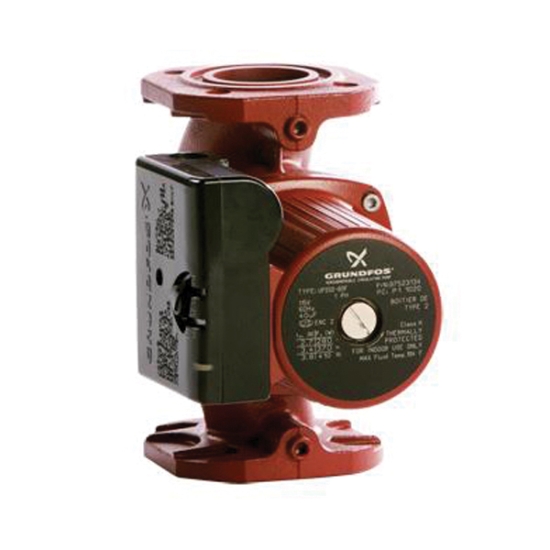

Grundfos 97523134 Cast Iron Circulating Pump, 1/2 HP, 115 V
- Manufacturer: Grundfos
- Brand: Grundfos
- MGPN: UPS5060F
- MPN: 97523134
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
UPS is a three-speed circulator pump designed for heating and air-conditioning systems and is also used for central and district heating systems. The pump provides reliable and maintenance-free operation. The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid.
| Additional Specifications | : | Number Of Poles: 2 |
| Amperage Rating | : | 2.7 - 3.6 A |
| Connection Type | : | Flanged |
| Environmental Conditions | : | Ambient Temperature Rating: 40 DEG F, Protection Class: H |
| Frequency Rating | : | 60 HZ |
| Housing Material | : | Cast Iron |
| HP Rating | : | 1/2 HP |
| Item Name | : | Circulating Pump |
| Maximum Head | : | 6.5 M |
| Number Of Speeds | : | 3 |
| Phase | : | 1 PH |
| Power Consumption | : | 260 - 350 W |
| Power Rating | : | 695 W |
| Temperature Rating | : | 0 - 110 DEG C |
| Voltage Rating | : | 115 V |
- Ceramic shaft and radial bearings
- Carbon axial bearing
- Stainless steel rotor can and bearing plate
- Corrosion-resistant impeller, composite
- Cast iron pump housing
Brochure
