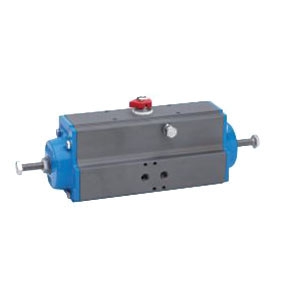

Valbia figure SR200 spring return pneumatic actuator (82SR0021). Rack and pinion design. With a hard-anodised aluminium body, blue coated end caps, visual position indication, 1/4 IN BSP pneumatic connections and with bi-directional open/close travel stops. Fitted with NBR seals (temperature range -20/+85 DEG C). Suitable for a maximum air supply pressure of 8 BAR g. ATEX II 2GD T6 compliant. ISO F14 mounting with an 36 MM star drive With +/-5 DEG open and close stroke travel adjustment With a patented design travel stop adjustment cam Solenoid valve connection in accordance with the NAMUR standard Top mounted device mounting in accordance with the NAMUR standard Bottom of pinion dimensions in accordance with ISO 5211-DIN 3337 With an anti-blowout design pinion Pre-lubricated for life.

• Solenoid valve connection in accordance with the NAMUR standar
• Top mounted device mounting in accordance with the NAMUR standard
• With an anti-blowout design pinion
• Pre-lubricated for life
• With a patented design travel stop adjustment cam
• With +/- 5 deg open and close stroke travel adjustment

• Specification Sheet https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/BONDA32_Spec.pdf
• Catalog https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Bonomi_050250NBV_Catalog.pdf
