3/4 FLOWTEK TRIAD SP31 THRD STD PORT 3-PC LIVE LOADED BALL VALVE

Can't find a product? Call now! 888-756-4110

Need something special? We can help! Call 888-756-4110

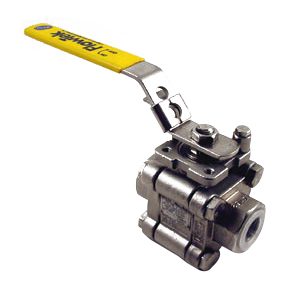

FLOW-TEK SP31 Class 600 316 Stainless Steel Manual Locking Handle 3-Piece Full-Port Ball Valve, 3/4 IN, Threaded

Nominal Size
- 3/4 IN 3/4 IN
  Nominal Size
  3%2F4+IN+
- 1 IN 1 IN
  Nominal Size
  1+IN+
- 1-1/4 IN 1-1/4 IN
  Nominal Size
  1-1%2F4+IN+
- 1-1/2 IN 1-1/2 IN
  Nominal Size
  1-1%2F2+IN+
- 2 IN 2 IN
  Nominal Size
  2+IN+
Connection Type
- Threaded Threaded
  Connection Type
  Threaded+

Item Name	:	Ball Valve
Type	:	3-Piece, Full-Port
Series/Model	:	Series SP31/Triad
Nominal Size	:	3/4 IN
Connection Type	:	Threaded
Pressure Rating	:	2200 PSI (WOG)
Pressure Class	:	Class 600
Body Material	:	316 Stainless Steel
Operator Type	:	Manual Locking Handle
Handle Material	:	304 Stainless Steel With Vinyl Sleeve
Stem Material	:	316 Stainless Steel
Trim Material	:	316 Stainless Steel Ball
Packing Material	:	Graphite
Gland Material	:	304 Stainless Steel
Seat Material	:	Tek Fil (Carbon Graphite/TFM)
Seal Material	:	Graphite/TFM
Material Standard	:	Body: ASTM A351 Grade CF8M, Ball: ASTM A351 Grade CF8M, Stem: ASTM A479
Industry Standards	:	ASME B1.20.1, ASME B16.34, API 607, NACE MR0175
Width	:	2.99 IN
Lead Free	:	No
Other Physical Dimension	:	3.03 IN Inlet Center To Top Of Handle, 6-1/2 IN Handle Length
Additional Specifications	:	Torque Rating: 130 IN-LB
Brand	:	FLOW-TEK
Firesafe	:	No

Flow-Tek's Triad series ball valves feature live loaded stem seals and a redundant body seal design. Available in full and standard port models, these rugged, high pressure 3-piece valves are ideal for process, severe service, high temperature, and high cycle applications

Specification Sheet https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/050FLOFP31033KGLBV_Spec.pdf
