1/2 BONOMI 700076 THRD SS FP 2-PC BALL VALVE

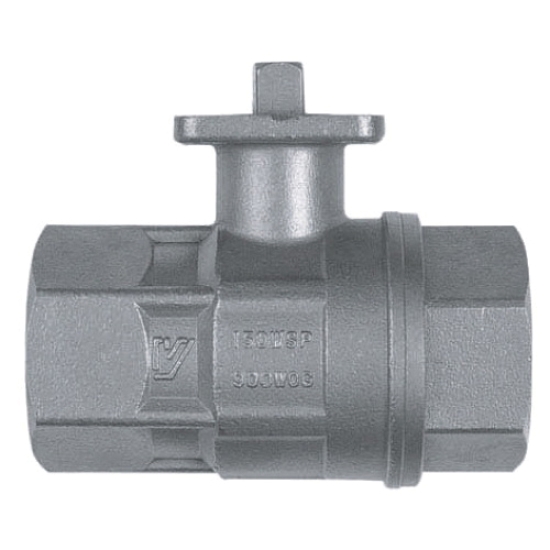

Bonomi 700076 Stainless Steel 2-Piece Full-Port Direct Mount Ball Valve, 1/2 IN, Threaded
- Manufacturer: Bonomi North America Inc
- Brand: Bonomi
- MGPN: 050700076BV
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
| Item Name | : | Ball Valve |
| Type | : | 2-Piece, Full-Port, Direct Mount |
| Series/Model | : | Model 700076 |
| Nominal Size | : | 1/2 IN |
| Connection Type | : | Threaded |
| Pressure Rating | : | 1000 PSI |
| Temperature Rating | : | 366 DEG F |
| Body Material | : | Stainless Steel |
| Stem Material | : | 316 Stainless Steel |
| Seat Material | : | PTFE |
| Seal Material | : | PTFE |
| Material Standard | : | Body: CF8M/WCB, End Connection: CF8M/WCB, Ball: AISI 316-CF8M |
| Lead Free | : | No |
| Brand | : | Bonomi |
| Firesafe | : | No |
- 2-piece stainless steel FNPT threaded, direct mount ball valve, full port
- Pressure rating 1/4 - 2 IN 1000 PSI
- Temperature range -4 to 366 DEG F
- Blow-out proof stem
- PTFE seats with o-ring backing for low operating torque
- PTFE seals and double o-ring stem packing
- 100% electronically tested in the open and closed position at 80 PSI
- ISO 5211 mounting pad
