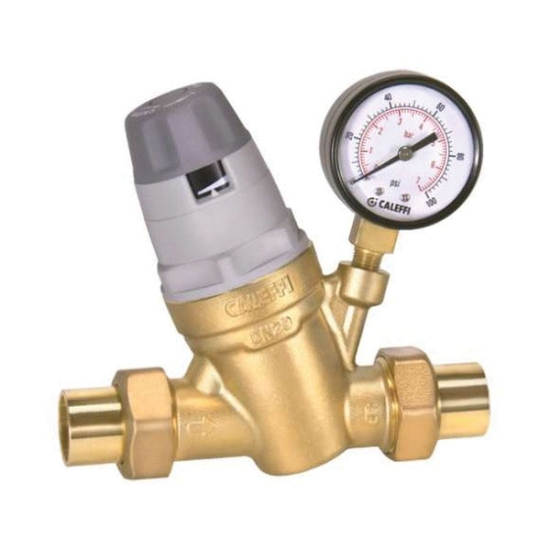

Complete with integral downstream pressure gauge and pressure setting adjustment knob.

The 5350 series AutoFill™ automatic filling valve is a pressure reducing valve which when installed on the water inlet piping in closed hydronic systems will maintain system pressure at a set value, automatically filling up with water as required. Fast fills the system to set pressure then automatically shuts off the water feed. This product is factory pre-set to 15 psi system pressure. To adjust the set pressure, simply turn the adjustment knob while observing the integral dowmstream pressure gauge. This product has the characteristic of being preadjustable, which means that it can be adjusted at the right pressure value before the system charging phase. After installation, the system pressure will automatically adjust itself to the set value and the water feed will stop when the set pressure is reached. The internal cartridge containing all the controlling components is preassembled as a selfcontained unit, to facilitate inspection and maintenance procedures.

• Automatic filling valve complete with integral downstream pressure gauge and pressure setting adjustment knob
• Glass fiber reinforced nylon PA66G30 cover, stainless steel control spindle and filter
• Suitable for water fluids

• Technical Drawing https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/535051A_Tech.pdf
• Catalog https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Caleffi_502710A_Catalog.pdf
• Instruction/Installation Manual https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Caleffi_535051A_Instruction_Installation_Manual.pdf
• Specification Sheet https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Caleffi_535051A_Specification_Sheet.pdf
• Submittal Sheet https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Caleffi_535051A_Submittal_Sheet.pdf
