1-1/4 109 PNTD FIRELOCK IR COUPLING ONE-BOLT W/E GSKT

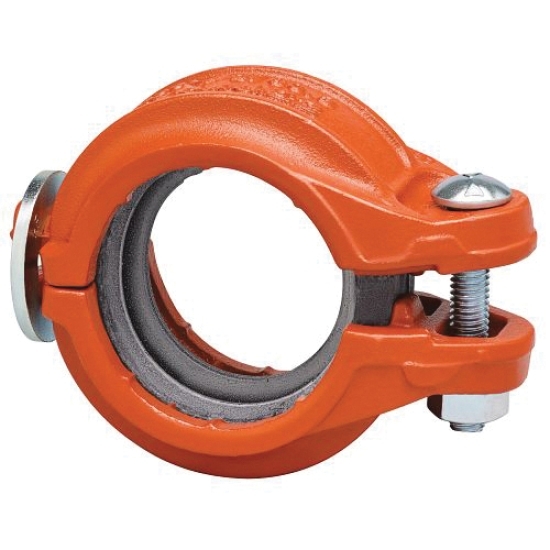

Victaulic FireLock™ Installation-Ready™ Style 109 Orange Enamel Painted Ductile Iron Pre-Assembled 1-Bolt Rigid Coupling With Grade E Gasket, 1-1/4 IN, Grooved
- Manufacturer: Victaulic Company
- Brand: Victaulic
- MGPN: 125P109CE
- MPN: L012109PE0
- UPC: 88348181239
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
| Sub Brand | : | FireLock™, Installation-Ready™ |
| Item Name | : | Rigid Coupling With Grade E Gasket |
| Type | : | Pre-Assembled, 1-Bolt |
| Series/Model | : | Style 109 |
| Nominal Size | : | 1-1/4 IN |
| Connection Type | : | Grooved |
| Material | : | Ductile Iron |
| Material Standard | : | ASTM A536 Grade 65-45-12 |
| Finish/Color | : | Orange Enamel Painted |
| Outside Diameter | : | 1.66 IN |
| Maximum Pressure | : | 365 PSI |
| Industry Standards | : | C/US UL Listed, FM, LPCB And VDS Approved, CE EN 10311 Regulation (EU) Number 305/2011 Certified |
| Other Physical Dimension | : | 1.88 IN Width, 0.1 IN Allowable Pipe End Separation, 3/8 X 2-1/4 IN Bolt/Nut, 3.13 IN Body Outside Diameter |
| Domestic/Import | : | Import |
- Added confidence of single pad to pad visual confirmation
- Pressure rated up to 365 PSI/2517 KPA/25 BAR
Specification Sheet
