1/2 PRESS PC633-4 P X MPT UNION

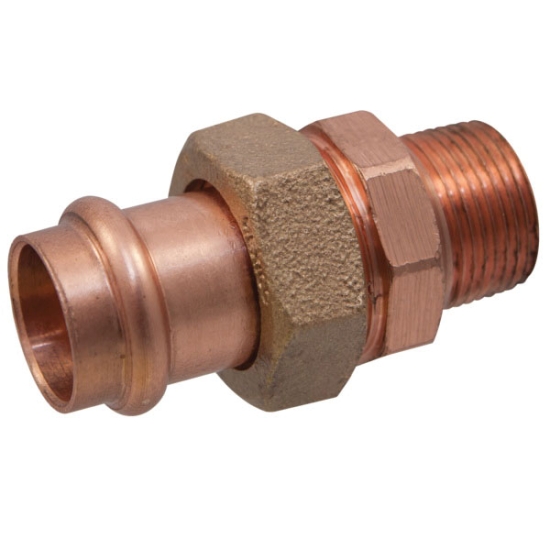

Nibco Press System® Wrot Copper Large Diameter Union, 1/2 IN, Press X MNPT
- Manufacturer: NIBCO
- Brand: NIBCO
- MGPN: 050CUNPMU
- MPN: 9256800PC
- UPC: 039923308344
- UOM: EA
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
The Nibco® Press System® copper union features an inboard bead and EPDM o-ring. Simply applying pressure from a pressing tool tightens the o-ring onto the tube, ensuring a clean, watertight seal in seconds with no flame, solder or flux. The union has a press connection and a male NPT thread. It is used to allow repair to the line without damage between a press connection and threaded connection.
| Cast | : | No |
| Connection Type | : | Press X MNPT |
| DWV | : | No |
| Industry Standards | : | CSA MSE 13, PS-117 And UPC Certified, NSF/ANSI 61 Annex G |
| Item Name | : | Union |
| Lead Free | : | Yes |
| Material | : | Copper |
| Material Specification | : | UNS C12200 |
| Material Standard | : | ASTM B75 |
| Maximum Pressure | : | 200 PSI |
| Nominal Size | : | 1/2 IN |
| O2 Cleaned | : | No |
| Series/Model | : | Model PC633-4 |
| Sub Brand | : | Press System® |
| TecTite | : | No |
| Temperature Rating | : | -20 To 250 DEG F |
| Tube Size | : | 1/2 IN |
| Type | : | Large Diameter |
| Wrot | : | Yes |
- Operating pressure 200 PSI CWP
- Temperature range -20 to 250 DEG F
- Lead-free
- Dezincification-resistant
- ASTM B75 alloy C12200 copper
