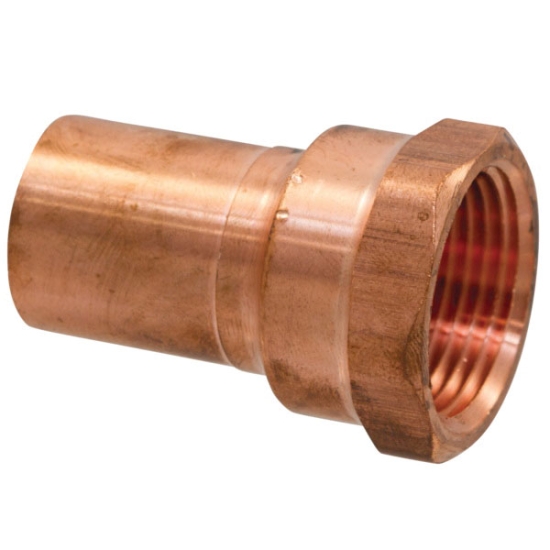

1/2 PRESS PC603-2 FTG X FPT ADAPTER
Nibco Press System® Wrot Copper Extended Adapter, 1/2 IN, Fitting X FNPT
- Manufacturer: NIBCO
- Brand: NIBCO
- MGPN: 050CUNPFTFA
- MPN: 9028305PC
- UPC: 039923391742
- UOM: EA
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
The Nibco® Press System® copper extended female fitting adapter allows the fitting end to be pressed into a press fitting. Simply applying pressure from a pressing tool tightens the o-ring onto the tube, ensuring a clean, permanent, watertight seal in seconds, with no flame, solder or flux. The female adapter has a fitting end and female NPT thread. These fittings provide a method for adapting a fitting end into a press connection to a threaded connection.
| Sub Brand | : | Press System® |
| Item Name | : | Extended Adapter |
| Series/Model | : | Model PC603-2 |
| Tube Size | : | 1/2 IN |
| Nominal Size | : | 1/2 IN |
| Connection Type | : | Fitting X FNPT |
| Material | : | Copper |
| Material Standard | : | ASTM B75 |
| Material Specification | : | UNS C12200 |
| Length | : | 1-3/4 IN |
| Maximum Pressure | : | 200 PSI |
| Temperature Rating | : | -20 To 250 DEG F |
| Industry Standards | : | ASME B16.51, CSA MSE 13, PS-117 And UPC Certified |
| TecTite | : | No |
| DWV | : | No |
| Cast | : | No |
| Wrot | : | Yes |
| Lead Free | : | Yes |
| O2 Cleaned | : | No |
- Operating pressure 200 PSI CWP
- Temperature range -20 to 250 DEG F
- Lead-free
- Dezincification-resistant
- ASTM B75 alloy C12200 copper
