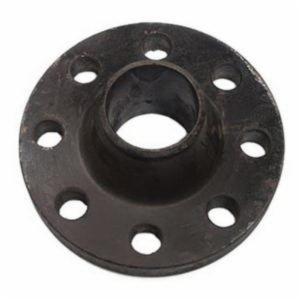

14 300 RF FS WELDNECK FLG XH BORE
Class 300 Forged Steel Raised Face Weld Neck Flange, 14 IN, 23 IN OD, Extra Heavy Bore, Domestic
- Manufacturer: Macomb Group Approved
-
Brand:
Macomb Group Approved™
MACOMB GROUP APPROVED™ identifies a product sold by The Macomb Group that complies with the form, fit, and function of the products responsive to your search request.
- MGPN: 140030FSWNFXH
- MPN: 322-140-000
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
| Item Name | : | Weld Neck Flange |
| Pressure Class | : | Class 300 |
| Nominal Size | : | 14 IN |
| Outside Diameter | : | 23 IN |
| Nominal Bore Size | : | 14.14 X 13-1/4 IN |
| Thickness | : | 2.06 IN |
| Face Type | : | Raised |
| Bolt Circle Diameter | : | 20-1/4 IN |
| Number Of Bolts | : | 20 |
| Bolt Hole Diameter | : | 1-1/4 IN |
| Hub Diameter | : | 16-3/4 IN |
| Length Through Hub | : | 5.56 IN |
| Bore Schedule | : | XH |
| Material | : | Forged Steel |
| Material Standard | : | ASTM A105/ASME SA105 |
| Maximum Pressure | : | 740 PSI |
| Temperature Rating | : | -20 To 100 DEG F |
| Industry Standards | : | ASME B16.5 |
| Other Physical Dimension | : | 14 IN Diameter Of Weld Neck |
| Domestic/Import | : | Domestic |
