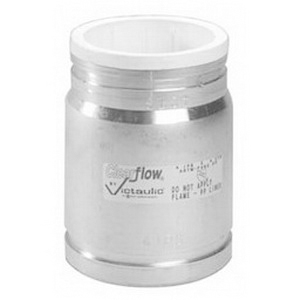

Clearflow Dielectric Transition Nipple, Series/Model: Style 47-GG, Nominal Size: 2 IN, Connection Type: Grooved End, Material: Ductile Iron, Material Standard: ASTM A536 Grade 65-45-12, ASTM A395 Grade 65-45-15, Finish/Color: Electro-Zinc Plated, Outside Diameter: 2-3/8 IN IPS, 2-1/8 IN CTS, Length: 4.19 IN, Maximum Pressure: 300 PSI, Temperature Rating: 180 DEG F, Industry Standards: UL Classified In Accordance With ANSI/NSF 61

• Create a dielectric waterway by insulating the inside of the metal casing, thus inhibiting the internal formation of galvanic local cell corrosion between the dissimilar metals in the presence of water
• Essentially eliminating galvanic local cell and stray current problems
• Clearflow dielectric waterway fittings continuously provide the most effective corrosion protection possible in any waterway system connection
• Inert, non-corrosive thermoplastic lining
• High temperature stabilized polyolefin polymer liner

• Specification https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/60047GGTF_spec.pdf
