150 FS RF SLIP-ON FLG 2 X 1

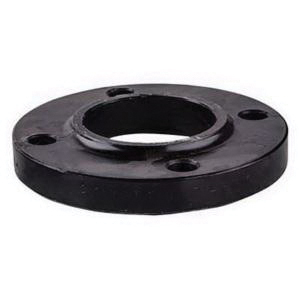

Class 150 Forged Steel Raised Face Reducing Slip-On Flange, 2 X 1 IN, 6 IN OD, Domestic
- Manufacturer: Macomb Group Approved
-
Brand:
Macomb Group Approved™
MACOMB GROUP APPROVED™ identifies a product sold by The Macomb Group that complies with the form, fit, and function of the products responsive to your search request.
- MGPN: 20010015FSRSOF
- MPN: 11A-020-010
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
| Item Name | : | Reducing Slip-On Flange |
| Pressure Class | : | Class 150 |
| Nominal Size | : | 2 X 1 IN |
| Outside Diameter | : | 6 IN |
| Nominal Bore Size | : | 2.44 IN |
| Thickness | : | 0.69 IN |
| Face Type | : | Raised |
| Bolt Circle Diameter | : | 4-3/4 IN |
| Number Of Bolts | : | 4 |
| Bolt Hole Diameter | : | 3/4 IN |
| Hub Diameter | : | 3.06 IN |
| Length Through Hub | : | 0.94 IN |
| Material | : | Forged Steel |
| Material Standard | : | ASTM A105/ASME SA105 |
| Maximum Pressure | : | 285 PSI |
| Temperature Rating | : | -20 To 100 DEG F |
| Industry Standards | : | ASME B16.5 |
| Domestic/Import | : | Domestic |
