3 X 2 150 FS FF RED THRD FLG

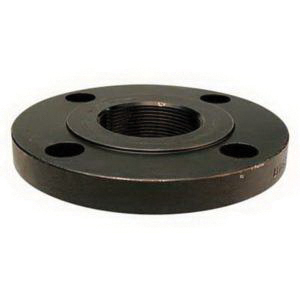

Class 150 Forged Steel Flat Face Reducing Threaded Flange, 3 X 2 IN, 7-1/2 IN OD, FNPT, Domestic
- Manufacturer: Macomb Group Approved
-
Brand:
Macomb Group Approved™
MACOMB GROUP APPROVED™ identifies a product sold by The Macomb Group that complies with the form, fit, and function of the products responsive to your search request.
- MGPN: 30020015FSFFRTF
- MPN: 14B-030-020
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
| Item Name | : | Reducing Threaded Flange |
| Pressure Class | : | Class 150 |
| Nominal Size | : | 3 X 2 IN |
| Outside Diameter | : | 7-1/2 IN |
| Connection Type | : | FNPT |
| Thickness | : | 0.88 IN |
| Face Type | : | Flat |
| Bolt Circle Diameter | : | 6 IN |
| Number Of Bolts | : | 4 |
| Bolt Hole Diameter | : | 3/4 IN |
| Material | : | Forged Steel |
| Material Standard | : | ASTM A105/ASME SA105 |
| Maximum Pressure | : | 285 PSI |
| Temperature Rating | : | -20 To 100 DEG F |
| Industry Standards | : | ASME B16.5 |
| Other Physical Dimension | : | 1.19 IN Thread Length |
| Domestic/Import | : | Domestic |
