Drop-In, shell-type anchors feature an internally threaded, all-steel shell with expansion cone insert and flush embedment lip. Anchors should be installed with carbide tipped hammer drill bits made in accordance to ANSI B212.15-1994 specifications. Anchors should be tested to ASTM E488 criteria and listed by ICC-ES. Anchors should also be listed by the following agencies as required by the local building code: UL, FM, City of Los Angeles, California State Fire Marshal and Caltrans.

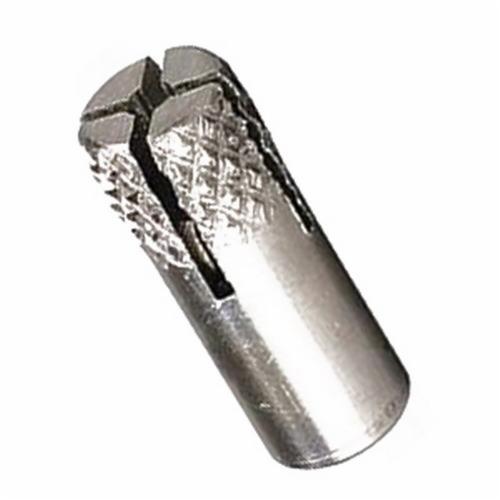

Multi-Set II® Type RL Non-Flange Drop-In Anchor Without Lip, 1/4 IN Diameter, Thread Size: 1/4-20, Thread Type: UNC, 1 IN Length, Material: Steel, Industry Standards: Tested To ASTM E488, Meets Or Exceeds U.S. Government G.S.A. Specification A-A-55614A Type-1 (Formerly GSA: FF-S-325 Group Vlll), UL And ICC-ES Listed, FM, Caltrans Approved, Finish/Color: Zinc Plated, Other Physical Dimension: 3/8 IN Thread Depth, 1 IN Minimum Embedment Hole Depth, 3/8 IN Drill Bit Diameter

• Below surface setting for easy patch work

• Catalog https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/RedHead_RL-12_Catalog.pdf
• Specification Sheet https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/rl-12_spec.pdf
• MSDS https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/ws-1226_msds.pdf
