1/4 X 2 SAMMY FOR STEEL 3/8 ROD VERTICAL

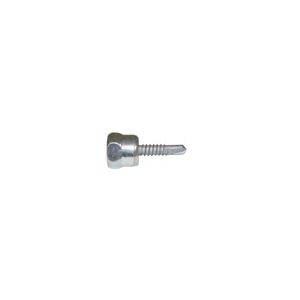

ITW Buildex Sammys® 8042957 Climaseal Electro-Zinc Steel Threaded Rod Anchor, 3/8-16 X 2 IN, 1/4-14 Screw
- Manufacturer: ITW Buildex
- Brand: ITW Buildex
- MGPN: DST-20
- MPN: 8042957
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Sammys® Threaded Rod Anchor, Series/Model: Model DST-20, 3/8-16 Rod, 1/4-14 Screw, 2 IN Overall Length, Maximum Load: 446 LB (20 GA), 970 (16 GA), AF End-Drilled Head, Material: Steel, Material Specification: C1022 Screw, C1010 Cap, Finish/Color: Climaseal, Electro-Zinc, 0.036 - 1/32 IN Minimum Thickness, 3/16 IN Maximum Thickness, Mounting: Vertical, Other Physical Dimension: 5/8 IN Head Diameter
| Sub Brand | : | Sammys® |
| Item Name | : | Threaded Rod Anchor |
| Series/Model | : | Model DST-20 |
| Rod Size | : | 3/8-16 |
| Screw Size | : | 1/4-14 |
| Overall Length | : | 2 IN |
| Maximum Load | : | 446 LB (20 GA), 970 (16 GA) |
| Head Type | : | AF End-Drilled |
| Material | : | Steel |
| Material Specification | : | C1022 Screw, C1010 Cap |
| Finish/Color | : | Climaseal, Electro-Zinc |
| Minimum Thickness | : | 0.036 - 1/32 IN |
| Maximum Thickness | : | 3/16 IN |
| Mounting | : | Vertical |
| Other Physical Dimension | : | 5/8 IN Head Diameter |
- Teks drill point technology delivers one step installation process
- No pre-drilling required
- Reduces installation time and cost
- Threaded rod attachment
- Allows specifiers and designers to engineer systems with fewer attachment points
- Holds from 446 - 3125 LB
- Installs with Sammys® nut driver
- Ensures correct installation torque
- Reduces occurrences of fastener failure due to over driving
