2 STANDARD SERIES BETA PIPE SIZE

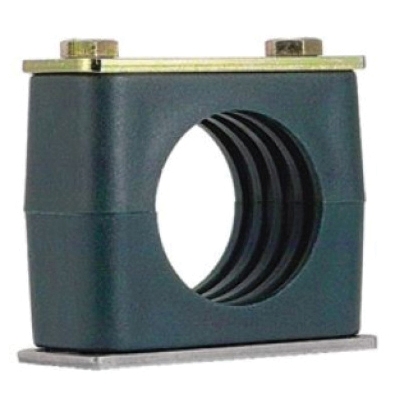

ZSI Beta Hydraulic Clamps™ Standard Series Green Steel With Polypropylene Cushion Beta Clamp, 2 IN Pipe
- Manufacturer: ZSI-Foster
- Brand: ZSI
- MGPN: S7038S
- MPN: S7038S
- UPC: 09471827817
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Beta Hydraulic Clamps™ Beta Clamp, Series/Model: Standard Series, Nominal Size: 2 IN Pipe, Bolt Size: 1/4-20 X 4 IN, Material: Steel With Polypropylene Cushion, Industry Standards: Meets ASSE, Finish/Color: Green Cushion, 4.81 IN Length, 1.2 IN Width, Other Physical Dimension: 4.05 IN Height, Temperature Rating:- 22 To 194 DEG F
| Item Name | : | Beta Clamp |
| Sub Brand | : | Beta Hydraulic Clamps™ |
| Series/Model | : | Standard Series |
| Nominal Size | : | 2 IN Pipe |
| Bolt Size | : | 1/4-20 X 4 IN |
| Material | : | Steel With Polypropylene Cushion |
| Industry Standards | : | Meets ASSE |
| Finish/Color | : | Green Cushion |
| Length | : | 4.81 IN |
| Width | : | 1.2 IN |
| Other Physical Dimension | : | 4.05 IN Height |
| Additional Specifications | : | Temperature Rating:- 22 To 194 DEG F |
- Cushions are polypropylene (green color)
- Recommended for systems with less than 1500 PSI (103 BAR) without dynamic loads
- Use for standard hydraulics, general pipe construction, electrical cables, and general duty piping applications subject to moderate levels of shock and vibration
Specification Sheet
