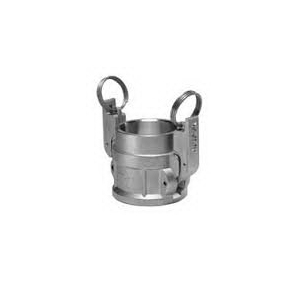

Autolok® Coupler, Series/Model: Series 733DL, Nominal Size: 2 IN, Thread Size: 2-11-1/2, Connection Type: FNPT, Material: 316 Stainless Steel, Outside Diameter: 3.09 IN, Length: 3.16 IN, Other Physical Dimension: 2.06 IN Coupler Length, 4-3/4 IN Distance Across Closed Cam Arms, 8.94 IN Distance Across Open Cam Arms

• Standard buna-N gasket
• Extra protection: self-locking arms, featuring exclusive Twin-Kam™ design provides extra protection against accidental release or uncoupling
• Easy operation: arms lock automatically with a positive click and release requires only an easy tug on the patented lock release mechanism
• Durable and efficient, designed to ensure optimum flow rates
• Heavy duty construction
• Autolok™ uses the patented Twin-Kam™ detents to hold the adaptor more securely to the coupler to provide added protection against accidental release

Application: For non-compressible liquids

• Brochure/Catalog https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/1672ANSS15_Broc.pdf
• Technical Drawing https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/733DL05SB_Tech.pdf
