2 TYPE A POLYPRO ADAPTER MALE X FPT

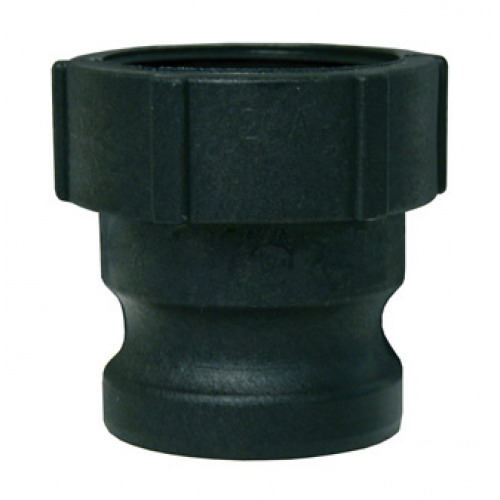

PPA200 Glass-Filled Polypropylene Type A Adapter, 2 IN, Male X FNPT
- Manufacturer: Macomb Group Approved
-
Brand:
Macomb Group Approved™
MACOMB GROUP APPROVED™ identifies a product sold by The Macomb Group that complies with the form, fit, and function of the products responsive to your search request.
- MGPN: 200APP
- MPN: PPA200
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Type A Adapter, Nominal Size: 2 IN, Connection Type: Male X FNPT, Material: Glass-Filled Polypropylene, Maximum Pressure: 100 PSI, Outside Diameter: 2-1/2 IN, Length: 3 IN, Other Physical Dimension: 1-1/8 IN Thread Length, 3-5/32 IN Distance Across Flat
| Item Name | : | Adapter |
| Type | : | Type A |
| Nominal Size | : | 2 IN |
| Connection Type | : | Male X FNPT |
| Material | : | Glass-Filled Polypropylene |
| Maximum Pressure | : | 100 PSI |
| Outside Diameter | : | 2-1/2 IN |
| Length | : | 3 IN |
| Other Physical Dimension | : | 1-1/8 IN Thread Length, 3-5/32 IN Distance Across Flat |
| Weight | : | 0.280 LB |
- Polypropylene cam and groove should not be mixed with metal fittings
- Not recommended for use with PTFE gaskets
- Pressure rating is based on the seal of the mating part
- Designed for use with liquids
Technical Drawing
