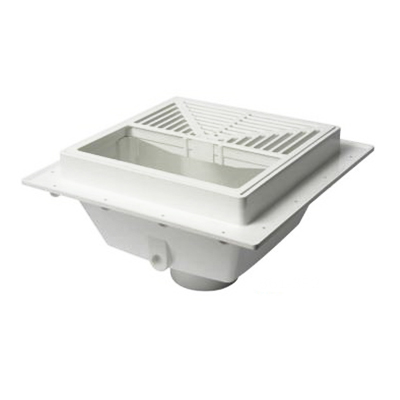

SquareMax™ style Square Floor Sink, Series/Model: Series 861, Size: 4 IN, Connection Type: Hub, Material: PVC, Material Standard: ASTM D2665, Industry Standards: UPC Listed, ASME A112.6.7-01 Certified, Length: 12 IN, 12 IN Width, 8-7/16 IN Height, Other Physical Dimension: 6-3/8 Sump Depth, 1-1/2 IN Top To Flange, 14-1/8 IN Flange Diameter, 11-3/16 IN Outside Rim, 10-11/16 IN Inside Rim, Additional Specifications: Sump Volume: 518 CU-IN

• Sump area is 54% larger than most PVC square floor sinks
• Low profile design with anchor flange for a clean appearance and a solid installation
• All inner surfaces are pitched, no standing water in sump area
• No strainer drain body only
• Floor sink shall show no significant distortion at water temperatures up to 180 DEG F
• Tough, impact resistant PVC construction
• Floor sink shall be designed with a concrete anchor flange for solid installations
• SCH 40 PVC sink

Application: Used where necessary in drainage systems

• Specification https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/8613PX_spec.pdf
