2-1/2 743 GALV 300 FLG ADAPTER W/E-GSKT

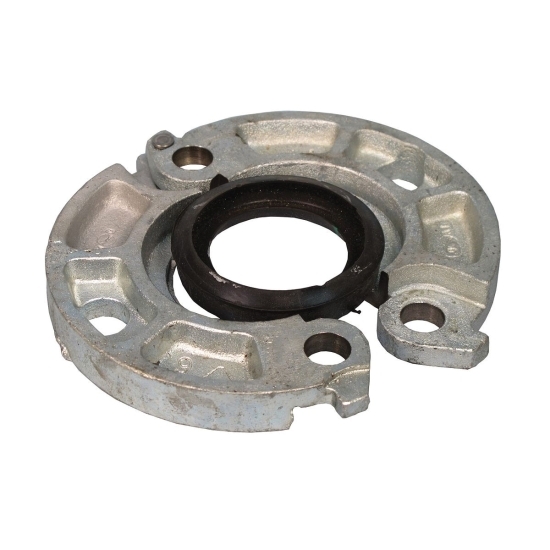

Victaulic Vic-Flange® Style 743 Class 300 Hot-Dipped Galvanized Ductile Iron Flange Adapter With Grade E Gasket, 2-1/2 IN, 7-1/2 IN OD Flange
- Manufacturer: Victaulic Company
- Brand: Victaulic
- MGPN: 250G743FAE
- MPN: L024743GE0
- UPC: 688304493553
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Vic-Flange® Flange Adapter With Grade E Gasket, Series/Model: Style 743, Class 300 Pressure Class, Nominal Size: 2-1/2 IN, 7-1/2 IN Flange Outside Diameter, Nominal Bore Size: 2-7/8 IN, 1.06 IN Flange Thickness, 5.88 IN Bolt Circle Diameter, Number Of Bolts: 8, Bolt Hole Diameter: 3/4 IN, Material: Ductile Iron, Material Standard: ASTM A536 Grade 65-45-12, Finish/Color: Hot-Dipped Galvanized, Maximum Pressure: 720 PSI, Industry Standards: C/US UL Listed, FM, LPCB, VDS, RINA Approved, Other Physical Dimension: 3-1/4 IN Bolt Length, 3.91 - 2.88 IN Sealing Surface, Domestic/Import: Import, Additional Specifications: End Load: 4670 LB Maximum
| Sub Brand | : | Vic-Flange® |
| Item Name | : | Flange Adapter With Grade E Gasket |
| Series/Model | : | Style 743 |
| Pressure Class | : | Class 300 |
| Nominal Size | : | 2-1/2 IN |
| Flange Outside Diameter | : | 7-1/2 IN |
| Nominal Bore Size | : | 2-7/8 IN |
| Flange Thickness | : | 1.06 IN |
| Bolt Circle Diameter | : | 5.88 IN |
| Number Of Bolts | : | 8 |
| Bolt Hole Diameter | : | 3/4 IN |
| Material | : | Ductile Iron |
| Material Standard | : | ASTM A536 Grade 65-45-12 |
| Finish/Color | : | Hot-Dipped Galvanized |
| Maximum Pressure | : | 720 PSI |
| Industry Standards | : | C/US UL Listed, FM, LPCB, VDS, RINA Approved |
| Other Physical Dimension | : | 3-1/4 IN Bolt Length, 3.91 - 2.88 IN Sealing Surface |
| Domestic/Import | : | Import |
| Additional Specifications | : | End Load: 4670 LB Maximum |
| Weight | : | 7.400 LB |
- ANSI class 300 flanges
- Pressure rated up to 720 PSI/4964 KPA/50 BAR
