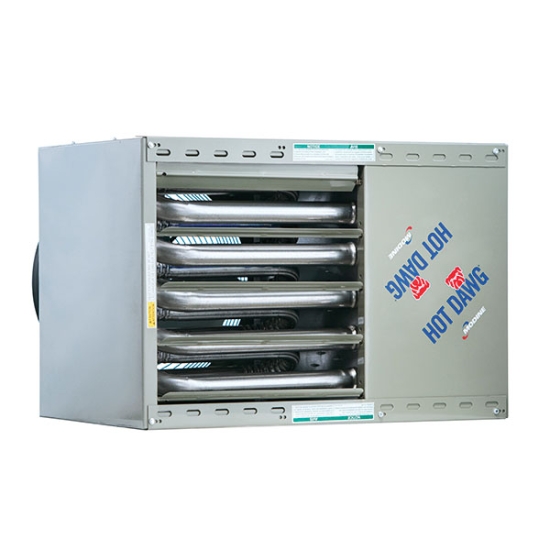

The ideal heating solution for residential garages and workshops, along with light commercial or industrial applications. With versatile installation options, the Hot Dawg® garage heater frees up more workspace by getting rid of space heaters that clutter up the area. The quiet operation allows your space to be warm without the distraction of a loud machine running in the background.

Power-Exhausted Gas-Fired Unit Heater, Series/Model: Model HD, Voltage Rating: 115 V, Amperage Rating: 2.5 A, Input: 75000 BTU/HR, Output: 60000 BTU/HR BTU Rating, Flow Rate: 1160 CFM, Motor Specification: 1/12 HP, 1625 RPM, 1.2 A, Connection: 1/2 IN Gas, Mounting: 18-1/2 IN Hole, 14 FT Maximum Mounting Height, 3 IN Vent Size, 18 IN Height, 26.8 IN Width, 25 IN Depth, Other Physical Dimension: 14 IN Fan Diameter, Industry Standards: C/US CSA Certified

• Low profile, lightweight design easily installs 1 IN from the ceiling with only two angle brackets
• Finger-proof fan guards on all units
• Reduce the need for maintenance with the permanently lubricated motor
• 100% shut-off with continuous retry to allow for safe ignition in the event the unit doesn't light on the first try
• Power vented model simplifies side-wall or roof venting with a small-diameter vent pipe
• Fuel type: natural or propane gas
• Designed, engineered and assembled in the USA

• Brochure/Catalog https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/HD30_Broc.pdf
• Instruction/Installation Manual https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Modine_HD30_Instruction_Installation_Manual.pdf
• Specification Sheet https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Modine_HD30_Specification_Sheet.pdf
