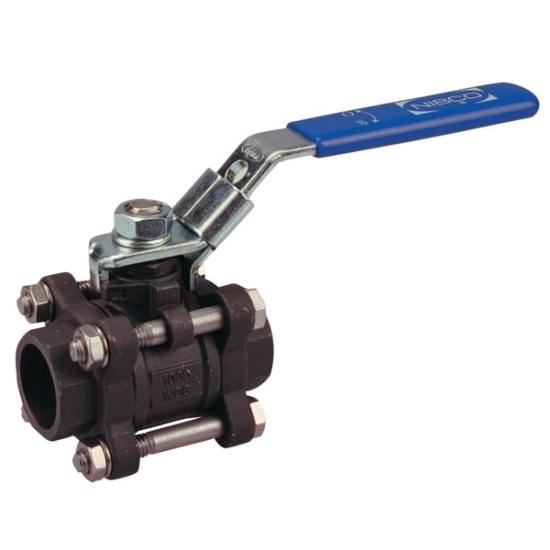

The Nibco® carbon steel ball valve provides bubble-tight shut-off at 1000 PSI. The valve features socket weld pipe connections for easy installation. The 3-piece valve may be used on hot/cold water, HVAC, and is recommended for process piping, some chemical and utility service applications. This valve features a standard locking lever handle for security. It may be used for isolation and throttling (half open to full open only).

3-Piece Full-Port Ball Valve, Series/Model: Model K-595-CS-R-66-LL, Nominal Size: 1 IN, Connection Type: Socket Weld, Pressure Rating: 1000 PSI (CWP) Non-Shock, Temperature Rating: 400 DEG F, Carbon Steel Body Material, Locking Lever Handle Operator Type, Handle Material: Carbon Steel, Stem Material: 316 Stainless Steel, Trim Material: 316 Stainless Steel Trim And Ball, Packing Material: Carbon Filled PTFE Stem, Carbon Steel Packing Gland, Seat Material: Reinforced PTFE, Seal Material: Reinforced PTFE, Material Standard: Body: ASTM A216 Grade WCB, Ball: ASTM A276/A351 Grade CF8M, Stem: ASTM A276, Gland: ASTM A108 Type 1045, Industry Standards: MSS-SP-110 Compliant, 3.62 IN Width, Lead Free: No, Other Physical Dimension: 2.95 IN Inlet Center To Top Of Handle, 5.71 IN Handle Length

• Valve pressure rating 1000 PSI/69 BAR non-shock cold working pressure
• 400 DEG F maximum temperature rating
• Full port
• Blow-out proof stem
• Stainless steel ball and stem
• Vented ball
• Locking lever handle
• Socket weld end connections
