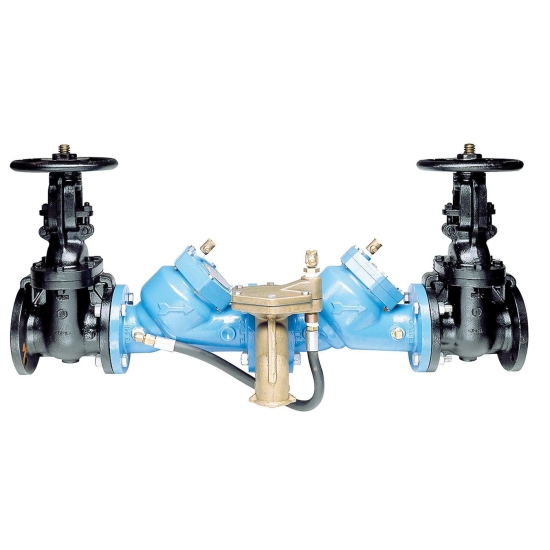

This 4 IN lead-free reduced pressure zone backflow preventer assembly with its exclusive design incorporating the air-in and water-out principle for protection during an emergency condition prevents the flow of polluted water from entering into the potable water supply due to back-siphonage and or backpressure. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards and from other contaminants found at the service line entrance. This assembly consists of an epoxy coated cast iron body using ArmorTek™ coating technology for advanced corrosion-resistance construction, non-rising stem resilient seated gate valves, captured spring check valves, replaceable seats, top mounted test cocks, and a field reversible pressure differential relief valve. The coating on this backflow assembly uses ArmorTek™ technology to resist corrosion due to microbial induced corrosion (MIC) or exposed metal substrate.

Backflow Preventer Reduced Pressure Zone Assembly With Resilient Seated Shutoff Valve, Series/Model: Series LF909-NRS, Nominal Size: 4 IN, Pressure Rating: 175 PSI, Temperature Rating: 33 - 110 DEG F, Cast Iron Body Material, Trim Material: Stainless Steel, Seat Material: Stainless Steel, Finish/Color: FDA Epoxy Coated, Industry Standards: ASSE 1013, CSA B64.4 Certified, FM Approved, C/US UL Classified, AWWA C511-92, IAPMO PS 31, SBCCI (Standard Plumbing Code), USC Manual For Cross-Connection Control, 55-1/8 IN Width, 14 IN Height, Lead Free: Yes

• Unique patented air-in and water-out design provides high capacity relief valve discharge performance during emergency conditions
• The valve body shall utilize a coating system with built in electrochemical corrosion inhibitor and microbial inhibitor
• Utilizes advanced ArmorTek™ coating technology to resist corrosion of internals
• Non-rising stem resilient seated gate valves

• Instruction/Installation Manual https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Watts_0122758_Instruction_Installation_Manual.pdf
• Specification Sheet https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Watts_0122758_Specification_Sheet.pdf
