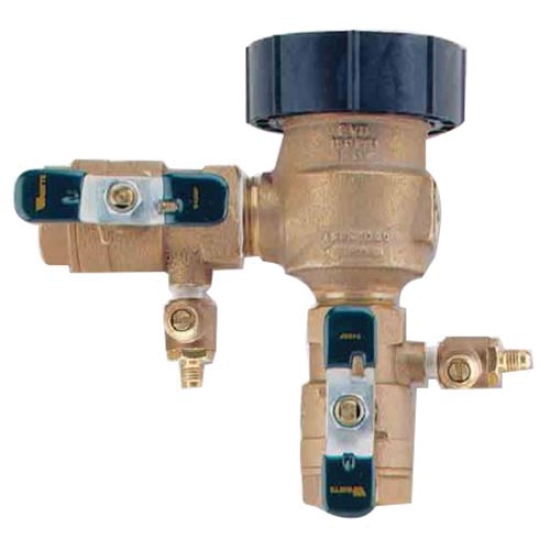

This 1-1/4 IN lead-free anti-siphon pressure vacuum breaker backflow preventer prevents the reverse flow of polluted water from entering into the potable water supply due to back-siphonage. It consists of a lead-free bronze body construction silicone rubber check valve disc, plastic check valve seat, stainless steel springs, a bonnet with silicone rubber o-ring seal, a lightweight plastic disc float, tee handle shut-off, and test cocks for winterization draining. It is ideal in health hazard continuous pressure applications such as irrigation systems and industrial process water systems where the water enters the equipment at or below its flood rim. The maximum pressure is 150 PSI (10.3 BAR) and the minimum pressure is 15 PSI (55 KPA).

Backflow Preventer Freeze-Resistant Pressure Vacuum Breaker With Ball Valve, Series/Model: Series LF800M4FR, Nominal Size: 1-1/4 IN, Pressure Rating: 150 PSI, Temperature Rating: 33 - 140 DEG F, Copper Silicon Alloy Body Material, Lever Handle Operator Type, Trim Material: Silicone Rubber Vent Disc, Check Valve Disc, Seat Material: Noryl® Plastic, Industry Standards: C/US CSA B64.12 Certified, UPC Listed, ASSE 1020, ANSI, IAPMO Certified, USC Manual Section 10, 8-7/8 IN Width, 9 IN Height, Lead Free: Yes

• Lead-free construction
• Female NPT inlet and outlet with quarter turn shut-offs
• Replaceable seat
• Easy internal access

• Brochure/Catalog https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/050LF007QTBP_Broc.pdf
• Instruction/Installation Manual https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Watts_0387096_Instruction_Installation_Manual.pdf
• Specification Sheet https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Watts_0792016_Specification_Sheet.pdf
