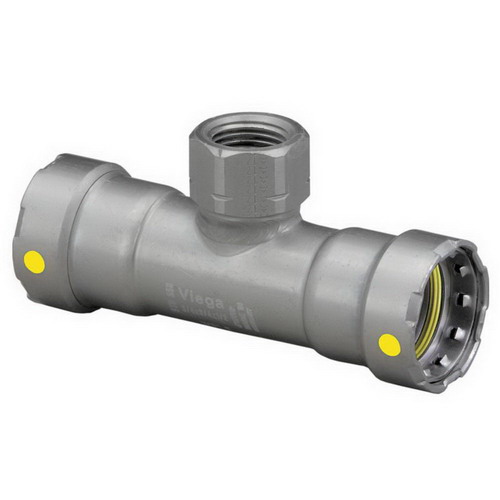

3/4 X 3/4 X 1/2 MEGAPRESS CS P X P X F RED TEE

Viega MegaPress® 4817.2 Carbon Steel Reducing Tee, 3/4 X 3/4 X 1/2 IN, Press X Press X FNPT

Manufacturer: Viega LLC
Brand: Viega
MGPN: 075075050CSMPFRT
MPN: 25405
CPN:

UPC: 691514254050
Min. Order Qty: 1
Qty. Interval: 1
Availability:
See All Availability

Price:
Qty Add To Cart
My Favorites
Add / Remove CPN
888-756-4110 888-756-4110

Nominal Size
- 1/2 IN 1/2 IN
  Nominal Size
  1%2F2+IN+
- 3/4 IN 3/4 IN
  Nominal Size
  3%2F4+IN+

DESCRIPTION
SPECIFICATIONS
FEATURES
Documents

MegaPress® Reducing Tee, Series/Model: Model 4817.2, Tube Size: 3/4 X 3/4 IN, Nominal Size: 1/2 IN, Connection Type: Press X Press X FNPT, Material: Carbon Steel, Maximum Pressure: 200 PSI, Temperature Rating: 0 - 250 DEG F, Industry Standards: UL 213 Listed, FM Class 1920 Approved, IAPMO PS117 Certified, ICC LC1002 Certified, DNV Certification, CRN #OA14541.6, ABS Listed, GL Listed, LR Certified, Compliant With UPC, UMC, IPC, IMC, IFGC, ASME B31, NFPA 13, 13D And 13R, 31, 54 And 58, CSA B149.1 Certified, Other Physical Dimension: 2.26 IN Center To End Run, 1.55 IN Center To End Outlet

Temperature Rating	:	0 - 250 DEG F
Maximum Pressure	:	200 PSI
Item Name	:	Reducing Tee
Series/Model	:	Model 4817.2
Weight	:	0.611 LB
Nominal Size	:	1/2 IN
Material	:	Carbon Steel
Sub Brand	:	MegaPress®
Industry Standards	:	UL 213 Listed, FM Class 1920 Approved, IAPMO PS117 Certified, ICC LC1002 Certified, DNV Certification, CRN #OA14541.6, ABS Listed, GL Listed, LR Certified, Compliant With UPC, UMC, IPC, IMC, IFGC, ASME B31, NFPA 13, 13D And 13R, 31, 54 And 58, CSA B149.1 Certified
Tube Size	:	3/4 X 3/4 IN

EPDM sealing element
Smart Connect® feature
Provided with 304 stainless steel separator ring and 420 stainless steel grip ring

Application: For use with ASTM SCH 5 - 40 black iron pipe in chilled water, hydronic heating, compressed air, fire sprinkler

Brochure/Catalog https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/050CSMPFA_broc.pdf
Installation Instruction https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/050CSMPFA_install.pdf
Specification https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/050CSMPFA_spec.pdf
