1/2 MEGAPRESS CS CAP

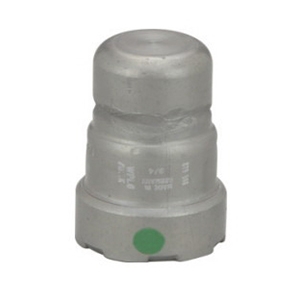

Viega MegaPress® 4856 Carbon Steel Cap, 1/2 IN, Press
- Manufacturer: Viega LLC
- Brand: Viega
- MGPN: 050CSMPCP
- MPN: 25730
- UPC: 691514257303
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
MegaPress® Cap, Series/Model: Model 4856, Tube Size: 1/2 IN, Connection Type: Press, Material: Carbon Steel, Length: 2.14 IN, Maximum Pressure: 200 PSI, Temperature Rating: 0 - 250 DEG F, Industry Standards: UL 213 Listed, FM Class 1920 Approved, IAPMO PS117 Certified, ICC LC1002 Certified, DNV Certification, CRN #OA14541.6, ABS Listed, GL Listed, LR Certified, Compliant With UPC, UMC, IPC, IMC, IFGC, ASME B31, NFPA 13, 13D And 13R, 31, 54 And 58, CSA B149.1 Certified
| Item Name | : | Cap |
| Sub Brand | : | MegaPress® |
| Series/Model | : | Model 4856 |
| Connection Type | : | Press |
| Weight | : | 0.203 LB |
| Maximum Pressure | : | 200 PSI |
| Temperature Rating | : | 0 - 250 DEG F |
| Industry Standards | : | UL 213 Listed, FM Class 1920 Approved, IAPMO PS117 Certified, ICC LC1002 Certified, DNV Certification, CRN #OA14541.6, ABS Listed, GL Listed, LR Certified, Compliant With UPC, UMC, IPC, IMC, IFGC, ASME B31, NFPA 13, 13D And 13R, 31, 54 And 58, CSA B149.1 Certified |
| Material | : | Carbon Steel |
- EPDM sealing element
- Smart Connect® feature
- Provided with 304 stainless steel separator ring and 420 stainless steel grip ring
Application: For use with ASTM SCH 5 - 40 black iron pipe in chilled water, hydronic heating, compressed air, fire sprinkler
