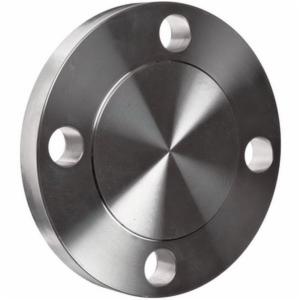

1/2 150 316SS RF BLIND FLG
Class 150 316 Stainless Steel Raised Face Blind Flange, 1/2 IN, 3-1/2 IN OD
- Manufacturer: Macomb Group Approved
-
Brand:
Macomb Group Approved™
MACOMB GROUP APPROVED™ identifies a product sold by The Macomb Group that complies with the form, fit, and function of the products responsive to your search request.
- MGPN: 050156SBF
- MPN: 050156SBF
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Blind Flange, Class 150 Pressure Class, Nominal Size: 1/2 IN, Outside Diameter: 3-1/2 IN, Thickness: 0.44 IN, Raised Face, 2.38 IN Bolt Circle Diameter, Number Of Bolts: 4, Bolt Hole Diameter: 0.62 IN, Material: 316 Stainless Steel, Material Standard: ASTM A182/ASME SA182, Industry Standards: ASME/ANSI B16.5, Other Physical Dimension: 1.38 IN Diameter Of Raised Face
| Item Name | : | Blind Flange |
| Pressure Class | : | Class 150 |
| Nominal Size | : | 1/2 IN |
| Outside Diameter | : | 3-1/2 IN |
| Thickness | : | 0.44 IN |
| Face Type | : | Raised |
| Bolt Circle Diameter | : | 2.38 IN |
| Number Of Bolts | : | 4 |
| Bolt Hole Diameter | : | 0.62 IN |
| Material | : | 316 Stainless Steel |
| Material Standard | : | ASTM A182/ASME SA182 |
| Industry Standards | : | ASME/ANSI B16.5 |
| Other Physical Dimension | : | 1.38 IN Diameter Of Raised Face |
| Weight | : | 2.000 LB |
-
-
