10 45 BLK FLGD ADAPTER NIPPLE

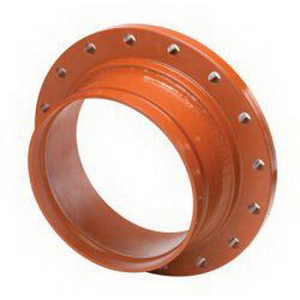

Victaulic Model 45R Class 150 Black Carbon Steel Adapter Nipple, 10 IN, 8 IN L, Grooved End X Flanged
- Manufacturer: Victaulic Company
- Brand: Victaulic
- MGPN: 100045FAN
- MPN: FF96045PRF
- UPC: 688304574986
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Adapter Nipple, Series/Model: Model 45R, Class 150 Pressure Class, Nominal Size: 10 IN, Length: 8 IN, Connection Type: Grooved End X Flanged, Material: Carbon Steel, Finish/Color: Black, Method Of Manufacturer: Direct Roll Groove (OGS), Maximum Pressure: 1000 PSI, Industry Standards: ANSI B16.5, C/US UL Listed, FM And CTP Approved, Other Physical Dimension: 10-3/4 IN Actual Outside Diameter, Domestic/Import: Import, Additional Specifications: Face Type: Raised
| Item Name | : | Adapter Nipple |
| Series/Model | : | Model 45R |
| Pressure Class | : | Class 150 |
| Nominal Size | : | 10 IN |
| Length | : | 8 IN |
| Connection Type | : | Grooved End X Flanged |
| Material | : | Carbon Steel |
| Finish/Color | : | Black |
| Method Of Manufacturer | : | Direct Roll Groove (OGS) |
| Maximum Pressure | : | 1000 PSI |
| Industry Standards | : | ANSI B16.5, C/US UL Listed, FM And CTP Approved |
| Other Physical Dimension | : | 10-3/4 IN Actual Outside Diameter |
| Domestic/Import | : | Import |
| Additional Specifications | : | Face Type: Raised |
| Weight | : | 59.300 LB |
- Standard fitting pressure ratings conform to ratings of installed couplings
- All fittings supplied with grooves or shoulders for fast installation
