3 150 MOVER EXPANSION JOINT GRVD

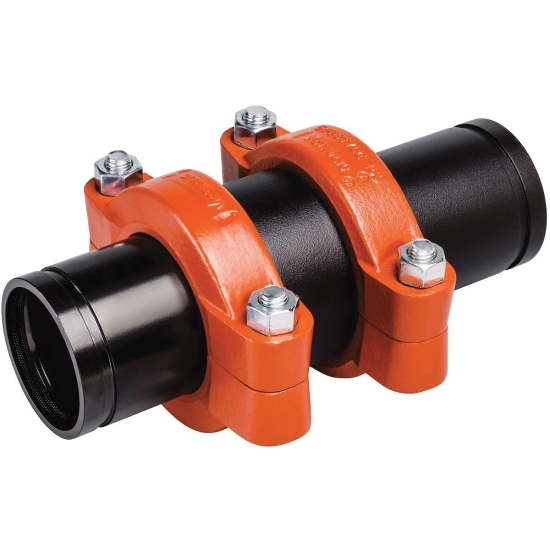

Victaulic Mover® Style 150 Orange Enamel Coated Ductile Iron Expansion Joint, 3 IN, Grooved End, Import
- Manufacturer: Victaulic Company
- Brand: Victaulic
- MGPN: 300150EJGE
- MPN: C030150PE1
- UPC: 688304020339
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Mover® Expansion Joint, Series/Model: Style 150, Nominal Size: 3 IN, Connection Type: Grooved End, Material: Ductile Iron, Material Standard: ASTM A536 Grade 65-45-12, Finish/Color: Orange Enamel Coated, Outside Diameter: 3-1/2 IN, Length: 15.13 IN, Maximum Pressure: 350 PSI, Temperature Rating: 230 DEG F, Other Physical Dimension: 4-3/4 IN Height, 7-1/4 IN Width, Domestic/Import: Import
| Sub Brand | : | Mover® |
| Item Name | : | Expansion Joint |
| Series/Model | : | Style 150 |
| Nominal Size | : | 3 IN |
| Connection Type | : | Grooved End |
| Material | : | Ductile Iron |
| Material Standard | : | ASTM A536 Grade 65-45-12 |
| Finish/Color | : | Orange Enamel Coated |
| Outside Diameter | : | 3-1/2 IN |
| Length | : | 15.13 IN |
| Maximum Pressure | : | 350 PSI |
| Temperature Rating | : | 230 DEG F |
| Other Physical Dimension | : | 4-3/4 IN Height, 7-1/4 IN Width |
| Domestic/Import | : | Import |
| Weight | : | 25.600 LB |
- Slip-type expansion joint providing up to 3 IN, 76 MM axial end movement
- Pressure rated up to 350 PSI/2413 KPA/24 BAR
Brochure/Catalog
