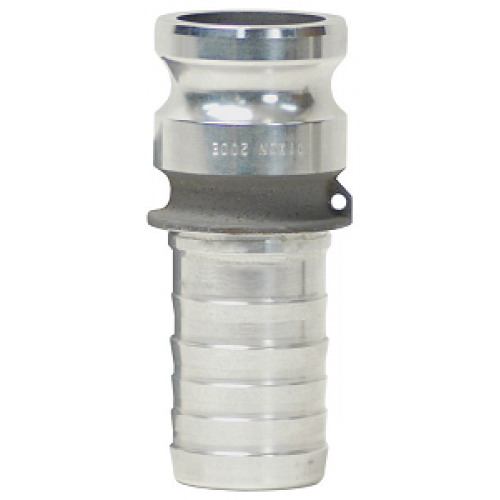

Boss-Lock Type E Adapter, Nominal Size: 3/4 IN, Connection Type: Male X Hose, Material: Aluminum, Material Standard: ASTM A356-T6, Maximum Pressure: 250 PSI, Outside Diameter: 27/32 IN Hose Shank X 1-1/4 IN Adapter, Length: 3-15/16 IN, Other Physical Dimension: 2-3/8 IN Hose Shank X 1 IN Adapter Length

• Pressure rating recommendations are based on the use of mating dixon fittings at ambient temperature 70 DEG F with a standard seal installed
• Precision machined to rigid tolerances

Application: For use with king crimp sleeves and ferrules

• Technical Drawing https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/075EAL_Tech.pdf
• Brochure/Catalog https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/200AAAL_Broc.pdf
