2 647-GG GRVD DIELECTRIC TRANSITION FTG

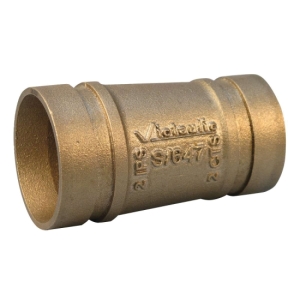

Victaulic Style 647-GG Silicon Copper Dielectric Transition Nipple, 2 IN, Grooved End
- Manufacturer: Victaulic Company
- Brand: Victaulic
- MGPN: 200647GGDTF
- MPN: F020647CGG
- UPC: 883481292498
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Dielectric Transition Nipple, Series/Model: Style 647-GG, Nominal Size: 2 IN, Connection Type: Grooved End, Material: Silicon Copper, Outside Diameter: 2-3/8 IN IPS, 2-1/8 IN CTS, Length: 4.19 IN, Maximum Pressure: 300 PSI, Industry Standards: UL Classified In Accordance With ANSI/NSF-61 And NSF 372, Domestic/Import: Import
| Item Name | : | Dielectric Transition Nipple |
| Series/Model | : | Style 647-GG |
| Nominal Size | : | 2 IN |
| Connection Type | : | Grooved End |
| Material | : | Silicon Copper |
| Outside Diameter | : | 2-3/8 IN IPS, 2-1/8 IN CTS |
| Length | : | 4.19 IN |
| Maximum Pressure | : | 300 PSI |
| Industry Standards | : | UL Classified In Accordance With ANSI/NSF-61 And NSF 372 |
| Domestic/Import | : | Import |
| Weight | : | 1.300 LB |
- Used to join carbon steel to copper tubing with one fitting
- Used to join stainless steel pipe to copper tubing with one fitting
- Pressure rated up to 300 PSI/2068 KPA/21 BAR
Brochure/Catalog
-
-
