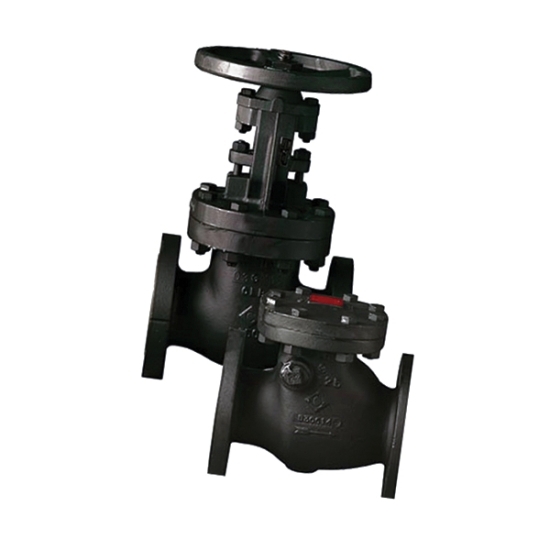

Swing Check Valve, Series/Model: Model 373, Nominal Size: 2 IN, Connection Type: Flanged, Pressure Rating: 200 PSI (CWP) Non-Shock, Class 125 Pressure Class, Cast Iron Body Material, Trim Material: Bronze Trim And Disc, Material Standard: Body: ASTM A126 Class B, Disc: ASTM B584, Material Specification: Disc: UNS C84400, Industry Standards: MSS-SP-71 Type 1, Military Specification MIL-V-18436, ANSI/ASME B16.10, 8 IN Width, Lead Free: No, Other Physical Dimension: 4-1/2 IN Inlet Center To Top Of Valve

Crane® iron body valves are proven performers in mechanical systems of commercial buildings throughout America.

• Fully rated to ASME and MSS-SP standards
• Full pressure class offering: class 125, class 150, class 250 and class 300
• Complete size range availability from 2 IN through 24 IN

Application: Commercial Plumbing and HVAC, Industrial Plumbing and HVAC, Utility Applications

• Specification Sheet https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/200373CV_Spec.pdf
• Brochure/Catalog https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/20047512GV_Broc.pdf
• Catalog https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Crane_05034612CV_Catalog.pdf
• Instruction/Installation Manual https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Crane_05034612CV_Instruction_Installation_Manual.pdf
