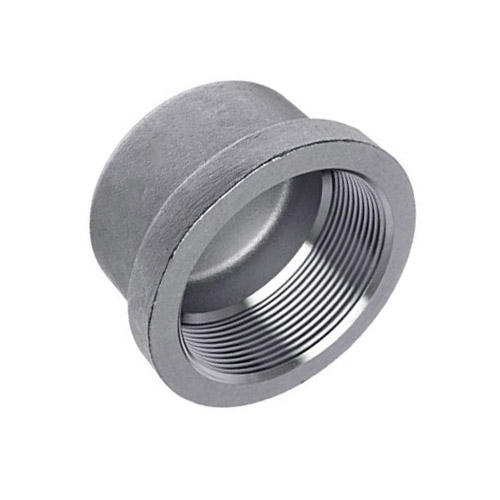

1/8 150 316SS MSS SP114 THRD CAP GLOBAL
Class 150 316 Stainless Steel Casting Cap, 1/8 IN, FNPT, MSS SP114,Global/Import
- Manufacturer: Macomb Group Approved
-
Brand:
Macomb Group Approved™
MACOMB GROUP APPROVED™ identifies a product sold by The Macomb Group that complies with the form, fit, and function of the products responsive to your search request.
- MGPN: 012156MSTCPI
- MPN: M616-02
- UPC: 671404103194
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
<p>Cap, Class 150 Pressure Class, Nominal Size: 1/8 IN, Connection Type: FNPT, Wall Thickness: 0.09 IN, Material: 316 Stainless Steel, Material Standard: ASTM A351 Grade CF8M, Method Of Manufacturer: Cast, Outside Diameter: 3/4 IN, Length: 0.68 IN, Industry Standards: MSS-SP-114, ASME B1.20.1, Other Physical Dimension: 0.09 IN Thickness Of Flat Top, 1/4 IN Thread Length, 0.2 IN Width Of Band, Domestic/Import: Import</p>
| Connection Type | : | FNPT |
| Domestic/Import | : | Import |
| Industry Standards | : | MSS-SP-114, ASME B1.20.1 |
| Item Name | : | Cap |
| Length | : | 0.68 IN |
| Material | : | 316 Stainless Steel |
| Material Standard | : | ASTM A351 Grade CF8M |
| Method Of Manufacturer | : | Cast |
| Nominal Size | : | 1/8 IN |
| Other Physical Dimension | : | 0.09 IN Thickness Of Flat Top, 1/4 IN Thread Length, 0.2 IN Width Of Band |
| Outside Diameter | : | 3/4 IN |
| Pressure Class | : | Class 150 |
| Wall Thickness | : | 0.09 IN |
| Weight | : | 0.037 LB |
