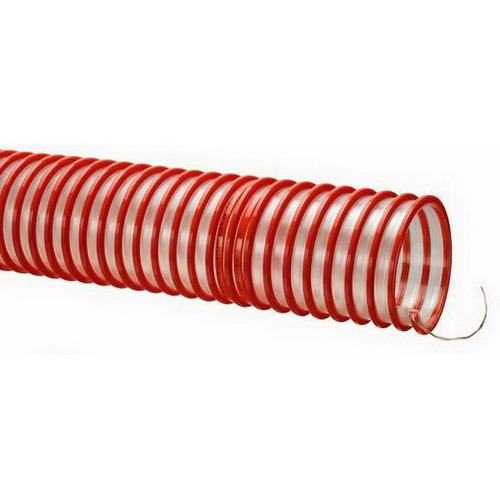

Tigervapor HD™ Vapor Recovery Hose, Inside Diameter: 3 IN, Outside Diameter: 3.54 IN, Length: 100/60 FT, Material: Polyurethane, Maximum Pressure: 13 PSI At 68 DEG F, Temperature Rating: -40 To 140 DEG F, Other Physical Dimension: 4-1/2 IN Bend Radius

• Polyurethane (TPU) tube with rigid PVC helix and embedded grounding wire
• Heavy duty construction thicker wall for longer hose life
• Non-permeable polyurethane construction - won't swell or become stiff like conventional TPR/rubber hoses and long life reduces operating costs
• Light weight much lighter than conventional TPR/rubber hoses
• Superior flexibility especially in sub-zero weather
• Grounding wire durable multi-strand copper wire dissipates static electricity, physically extract wire from the rigid helix and bond to the metal coupling (or by other means) to ground
• Easy slide helix rigid counter clockwise helix design protects hose tube from cover wear, allows hose to slide easily over rough surfaces

Application: Used to handle gasoline, ethanol, diesel and biodiesel vapors

• Brochure/Catalog https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/300VH_broc.pdf
