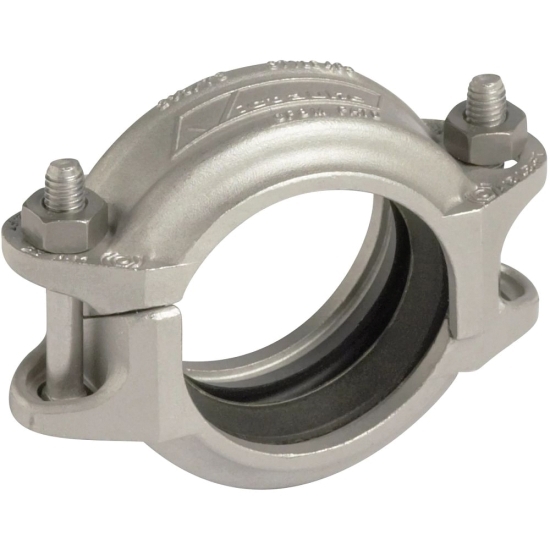

2-1/2 VIC 489 316SS COUPLING W/E GASKET
Victaulic Style 489 316 Stainless Steel Rigid Coupling With Grade E Gasket, 2-1/2 IN, Grooved
- Manufacturer: Victaulic Company
- Brand: Victaulic
- MGPN: 250489CE
- MPN: L024489XE0
- UPC: 688304659133
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Rigid Coupling With Grade E Gasket, Series/Model: Style 489, Nominal Size: 2-1/2 IN, Connection Type: Grooved, Material: 316 Stainless Steel, Material Standard: ASTM A351 Grade CF8M, Method Of Manufacturer: Cast, Outside Diameter: 2-7/8 IN, Length: 5.62 IN, Maximum Pressure: 600 PSI, Other Physical Dimension: 1.86 IN Width, 0.05 IN Allowable Pipe End Separation, (2) 3/8 X 2-1/2 IN Bolt, 3.92 IN Body Outside Diameter, Domestic/Import: Import, Additional Specifications: Nut Torque Rating: 25 - 30 NM
| Item Name | : | Rigid Coupling With Grade E Gasket |
| Series/Model | : | Style 489 |
| Nominal Size | : | 2-1/2 IN |
| Connection Type | : | Grooved |
| Material | : | 316 Stainless Steel |
| Material Standard | : | ASTM A351 Grade CF8M |
| Method Of Manufacturer | : | Cast |
| Outside Diameter | : | 2-7/8 IN |
| Length | : | 5.62 IN |
| Maximum Pressure | : | 600 PSI |
| Other Physical Dimension | : | 1.86 IN Width, 0.05 IN Allowable Pipe End Separation, (2) 3/8 X 2-1/2 IN Bolt, 3.92 IN Body Outside Diameter |
| Domestic/Import | : | Import |
| Additional Specifications | : | Nut Torque Rating: 25 - 30 NM |
| Weight | : | 1.900 LB |
- Greatly reduces linear or angular movement and is useful for valve connections where rigidity is required
- Pressure rated up to 600 PSI/4137 KPA/41 BAR
