6 741 GALV FLG ADAPTER W/T-GSKT

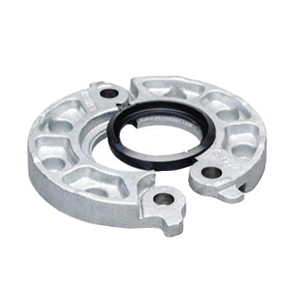

Victaulic Vic-Flange® Style 741 Hot-Dipped Galvanized Ductile Iron Flange Adapter With Grade T Gasket, 6 IN, 11 IN OD Flange
- Manufacturer: Victaulic Company
- Brand: Victaulic
- MGPN: 600G741FAT
- MPN: L060741GT0
- UPC: 688304474927
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Vic-Flange® Flange Adapter With Grade T Gasket, Series/Model: Style 741, Nominal Size: 6 IN, 11 IN Flange Outside Diameter, Nominal Bore Size: 6-5/8 IN, 1 IN Flange Thickness, 9-1/2 IN Bolt Circle Diameter, Number Of Bolts: 8, Bolt Hole Diameter: 3/4 IN, Material: Ductile Iron, Material Standard: ASTM A536 Grade 65-45-12, Finish/Color: Hot-Dipped Galvanized, Maximum Pressure: 300 PSI, Industry Standards: C/US UL Listed, FM, LPCB, VDS, LR, RINA, CNBOP, DNV-GL Approved, Other Physical Dimension: 3-1/2 IN Bolt Length, 7.78 - 6.63 IN Sealing Surface, Domestic/Import: Import, Additional Specifications: End Load: 10350 LB Maximum
| Sub Brand | : | Vic-Flange® |
| Item Name | : | Flange Adapter With Grade T Gasket |
| Series/Model | : | Style 741 |
| Nominal Size | : | 6 IN |
| Flange Outside Diameter | : | 11 IN |
| Nominal Bore Size | : | 6-5/8 IN |
| Flange Thickness | : | 1 IN |
| Bolt Circle Diameter | : | 9-1/2 IN |
| Number Of Bolts | : | 8 |
| Bolt Hole Diameter | : | 3/4 IN |
| Material | : | Ductile Iron |
| Material Standard | : | ASTM A536 Grade 65-45-12 |
| Finish/Color | : | Hot-Dipped Galvanized |
| Maximum Pressure | : | 300 PSI |
| Industry Standards | : | C/US UL Listed, FM, LPCB, VDS, LR, RINA, CNBOP, DNV-GL Approved |
| Other Physical Dimension | : | 3-1/2 IN Bolt Length, 7.78 - 6.63 IN Sealing Surface |
| Domestic/Import | : | Import |
| Additional Specifications | : | End Load: 10350 LB Maximum |
| Weight | : | 9.900 LB |
- Pressure rated up to 300 PSI/2068 KPA/21 BAR
Brochure
