4 PVC THRD 3-WAY BALL VALVE

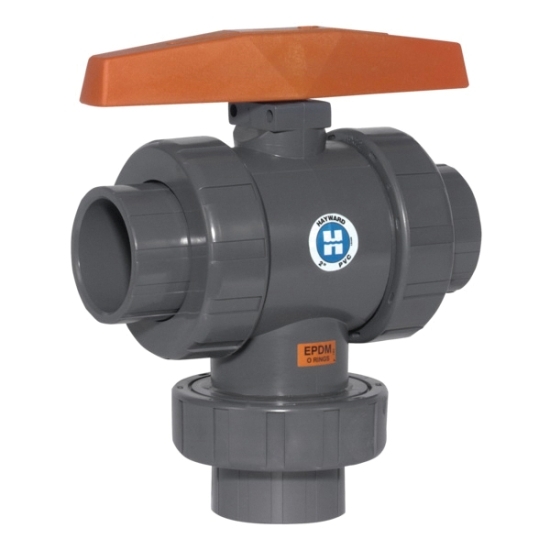

Hayward TW PVC 3-Way True Union Ball Valve, 4 IN, FNPT
- Manufacturer: Hayward Industrial Products
- Brand: Hayward
- MGPN: 400PVT3WBV
- MPN: TW1400TE
- UPC: 610377832243
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
True Union Ball Valve, Series/Model: Series TW, Nominal Size: 4 IN, Connection Type: FNPT, Ports/Ways: 3-Way, Pressure Rating: 150 PSI At 70 DEG F Non-Shock, PVC Body Material, Seat Material: PTFE, Seal Material: EPDM, Material Standard: Body: ASTM D1784 Cell Class 12454, 14 IN Width, Lead Free: No, Other Physical Dimension: 10-1/2 IN Handle Length, Additional Specifications: Flow Co-Efficient (Cv): 450
| Item Name | : | Ball Valve |
| Type | : | True Union |
| Series/Model | : | Series TW |
| Nominal Size | : | 4 IN |
| Connection Type | : | FNPT |
| Number Of Ports/Ways | : | 3-Way |
| Pressure Rating | : | 150 PSI At 70 DEG F Non-Shock |
| Body Material | : | PVC |
| Seat Material | : | PTFE |
| Seal Material | : | EPDM |
| Material Standard | : | Body: ASTM D1784 Cell Class 12454 |
| Width | : | 14 IN |
| Lead Free | : | No |
| Other Physical Dimension | : | 10-1/2 IN Handle Length |
| Additional Specifications | : | Flow Co-Efficient (Cv): 450 |
| Weight | : | 27.900 LB |
TW series 3-way ball valves are available in PVC and CPVC. O-rings are either FPM or EPDM and the seats are PTFE. Up to 2 IN sizes have socket and threaded end connections. Depending on flow configuration, see our library, there is a choice of 3 ball types. All TW series valves are assembled with silicone free lubricant.
- Position indicator
- Easily actuated
- PTFE seats
- EPDM o-rings
- Double o-ring stem seals
Brochure/Catalog
