14 PNTD W110 AGS LR GRVD 45 ELL

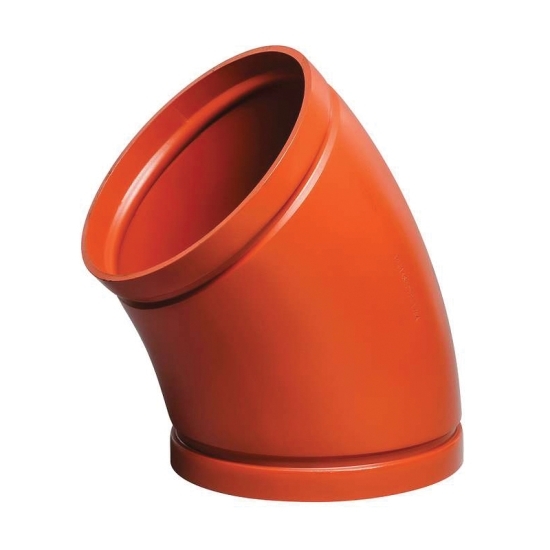

Victaulic AGS® Model W110 Orange Enamel Painted Ductile Iron Long Radius 45 DEG Elbow, 14 IN, Grooved End
- Manufacturer: Victaulic Company
- Brand: Victaulic
- MGPN: 1400P110L45AGS
- MPN: W140110PF0
- UPC: 688304997891
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
AGS® Long Radius 45 DEG Elbow, Series/Model: Model W110, Nominal Size: 14 IN, Connection Type: Grooved End, Material: Ductile Iron, Material Standard: ASTM A536 Grade 65-45-12, Finish/Color: Orange Enamel Painted, Method Of Manufacturer: Cast, Outside Diameter: 14 IN, Maximum Pressure: 350 PSI, Other Physical Dimension: 8-3/4 IN Center To End, Domestic/Import: Import
| Sub Brand | : | AGS® |
| Item Name | : | Long Radius 45 DEG Elbow |
| Series/Model | : | Model W110 |
| Nominal Size | : | 14 IN |
| Connection Type | : | Grooved End |
| Material | : | Ductile Iron |
| Material Standard | : | ASTM A536 Grade 65-45-12 |
| Finish/Color | : | Orange Enamel Painted |
| Method Of Manufacturer | : | Cast |
| Outside Diameter | : | 14 IN |
| Maximum Pressure | : | 350 PSI |
| Other Physical Dimension | : | 8-3/4 IN Center To End |
| Domestic/Import | : | Import |
| Weight | : | 83.000 LB |
- Fitting pressure ratings are equivalent to the Victaulic AGS™ coupling used to install them
- Grooved ends eliminate pipe end preparation for the fittings
